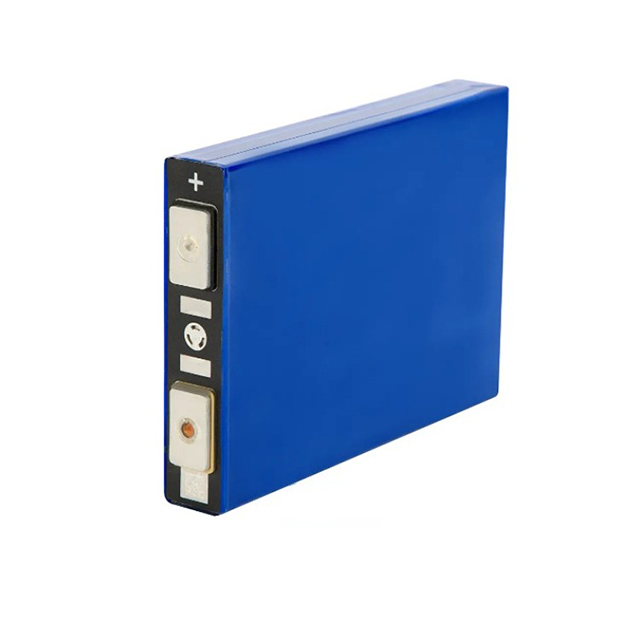

IFP20100140A-30Ah
GOTION/GUOUXUAN
Product Description
Product Advantage
Higher energy density: The energy density of 30Ah battery cells is still very high, which can meet the endurance requirements of small and medium-sized electric vehicles.
Excellent cycle life: Excellent performance in service life, suitable for applications that require long-term high-frequency charging and discharging, reducing battery replacement frequency and maintenance costs.
Good high-rate charge and discharge performance: Suitable for use in application scenarios that require rapid response, such as power tools and emergency power supplies.
Low temperature performance: Guoxuan 30Ah battery cells can still maintain a high discharge efficiency in low temperature environments, which is very advantageous for use in cold areas and is suitable for working at lower temperatures.
Lower internal resistance: It helps to reduce energy loss during charging and discharging, improve overall efficiency, and reduce heat generation, which is beneficial to battery temperature control and life extension.
High safety performance: Guoxuan's battery cells have undergone rigorous safety tests, including short circuit, overcharge, over discharge and other tests, with high safety and can effectively prevent thermal runaway of the battery cells.
Technical Parameters
2.1 Standard Technical Parameters
Item | Specification | Condition／Notes |
2.1.1 Nominal Capacity | 30Ah | Refer to 4.1.1&4.1.2 standard charge and discharge procedure |
2.1.2 Nominal Voltage | 3.2V | 0.33C |
2.1.3 Charge/Discharge Voltage Range | 2.0V~3.65V | T>0℃ |
1.8V~3.65V | T≤0℃， Forbid continuous charging | |
2.1.4 Weight | 612g±18g | |
2.1.5 Weight energy density | 170Wh/kg | 0.33C |
2.1.6 Volume energy density | 350Wh/L | 0.33C |
2.1.7 ACR | 0.6mΩ≤R≤1.2mΩ | 25℃±2℃ （17％±3％SOC） Fresh cell(17%±3%SOC) |
2.1.8 DCR | ≤3mΩ | 50%SOC@5C10S,25±2℃ |
2.2 Recommended Charge specification
Item | Specification | Condition／Notes |
2.2.1 Regular Charge(Slow charge) | 15A 3.65V 1.5A 15℃≤T<45℃ | Constant current Constant voltage Cut off condition(terminating) Temperature |
2.2.2 Step Charge | See appendix A．1 | Fast charging strategy at different temperature |
Product Uses
This battery cell is suitable for electric vehicles, power tools, energy storage and other fields, especially for those scenarios with high requirements for battery life, lifespan and safety.
FAQ
Q1. What about the cells quality?
A. We provide the the original factory cells, Grade a with the original factory data. if you need grade B cells pls inform us earlier.
Q2. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-7 weeks, it depends on the order quantity.
Q3. Do you have MOQ limit?
A. Yes, we have MOQ, different production not same,pls contact us for make sure the MOQ. 10pcs-200 pecs sample order is available.
