Product Description

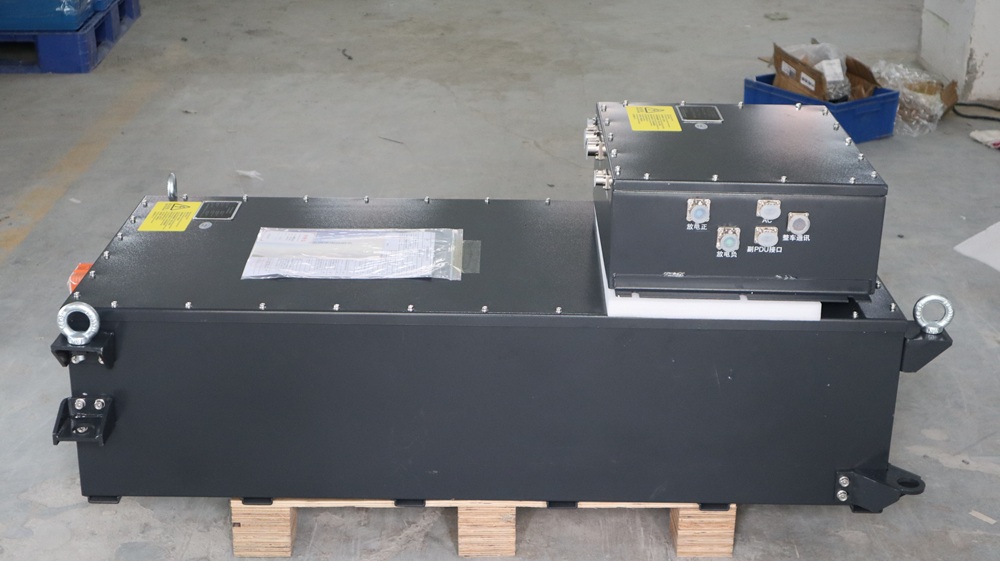

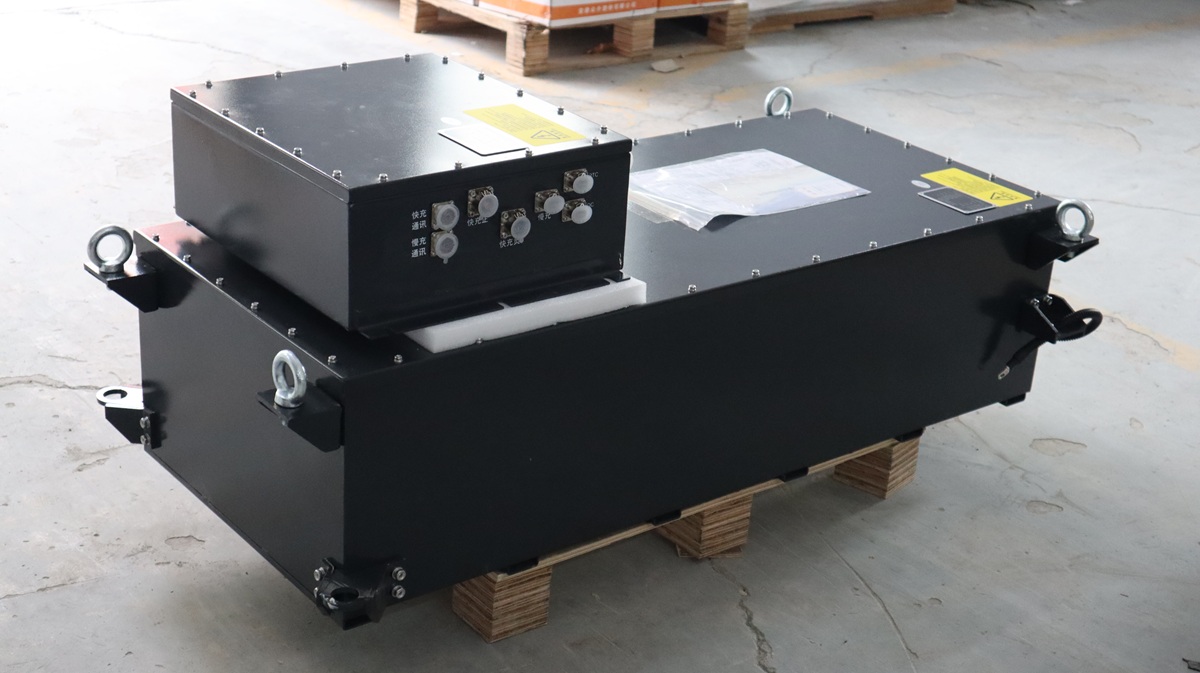

The 400V 100Ah lithium battery pack from GBE Battery is a high-voltage power solution engineered for industrial and specialty electric vehicles. Designed with Grade A LiFePO4 (LFP) cells, this 40kWh energy system delivers exceptional performance, safety, and longevity for applications requiring robust propulsion and consistent energy delivery.
It is especially suited for:
Special-purpose electric forklifts
Electric sightseeing trains
Tourism area shuttles & trackless trains
Utility and airport ground support vehicles
Electrified industrial transport
With a high system voltage of 400V and advanced BMS control, this pack ensures minimal current loss, smoother torque control, and longer runtime per charge—ideal for 24/7 demanding environments.
| Specification | Value |
|---|---|
| Rated Voltage | 400V |
| Rated Capacity | 100Ah |
| Rated Energy | 40,000Wh (40kWh) |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Weight | 330kg |
| Production Date | 2022.08.30 |
| Model Number | 400V100Ah |
| Product Code | GXC8YC921001 |
| Application Type | Industrial EVs / High Voltage Drive Systems |
Operating at 400V reduces current demand for the same power, minimizing cable losses and improving overall efficiency.
Safe thermal behavior and low risk of thermal runaway make this battery ideal for public-facing or mission-critical use.
Equipped with a robust Battery Management System (BMS) for real-time monitoring, overvoltage/undervoltage protection, thermal regulation, and data reporting.
Engineered for over 3000 cycles at 80% DOD (Depth of Discharge) with minimal degradation. Maintenance-free design supports reduced operation cost.
We support customized designs for voltage, casing, connectors, CAN/RS485 communication protocols, and more.
Sightseeing Trains & Tourist Transport Vehicles
Operates quietly with long runtime in scenic parks, airports, and cultural sites.
Special Forklifts & Utility Loaders
High-voltage configuration enhances lift power, runtime, and regen braking efficiency.
Electric Shuttles & Trams
Stable, clean power source ideal for enclosed tourist vehicles in resorts and campuses.
️ Construction Site Material Movers
Ideal for indoor and semi-outdoor environments with zero-emission requirements.
GBE Battery is a trusted supplier of Grade A lithium battery cells and complete battery pack systems. We serve clients globally with flexible solutions tailored to local industrial needs. Our strengths include:
✅ Only use A-grade, traceable cells with full batch test data
✅ Fast engineering support with custom CAD battery pack layout
✅ In-stock packs ready for sample dispatch
✅ Global logistics, MSDS, UN38.3, CE documents ready
✅ Long-term supply contracts available for OEMs & fleet owners
Contact: info@gbebattery.com
WhatsApp: +86 156 5600 5075
Q1: Is the 400V battery safe to use in public transport vehicles?
A: Yes, the pack uses high-quality LFP cells with built-in BMS protection and insulation. It meets international safety standards.
Q2: Can I customize the voltage or size?
A: Absolutely. We support voltage ranges between 300V–800V, capacity between 50Ah–200Ah, with size and mounting tailored to your application.
Q3: What kind of after-sales support do you provide?
A: We offer remote debugging, integration guides, and replacement services under warranty. Engineering advice is available for system integration.
Q4: Do you provide sample packs for field testing?
A: Yes, small quantity orders are available to test compatibility and runtime in real use cases.
Q5: Can I integrate it with CAN bus-based controllers?
A: Yes. The BMS can be configured with CAN/RS485 protocols to communicate with EV controllers or PLC systems.
