Product Description
|
Product Description

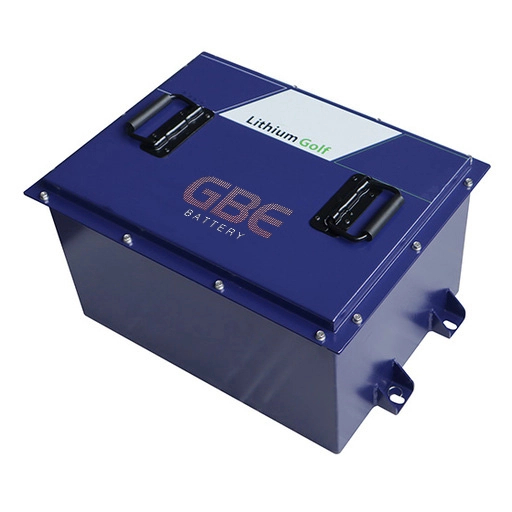

The battery system consists of a battery rack and cells, each integrated with the intelligent BMS inside, which has great advantages in terms of safety, cycle life, energy density, fast charging, temperature range and environmental protection.
|
Application
|
Data Sheet
| Rated Voltage | 51.2V |
| Rated capacity | 105Ah |
| Dimension(L*W*H) | 600*310*270 |
| Voltage range | 40V-58.4V |
| SOC | 0-100% |
| Working temperature | -20°C-55°C |
| Discharge current | 100A |
| Charge temperature range | 0°C-55°C |
| Charge current | 30A |
| Charge volatge | 58.4V |
|
Advantages and Features
1. Safety Performance: safest Lithium Iron Phosphate battery, built-in BMS
2. Long Cycle Life: > 4000 times, 6-8 times life cycle compare to lead acid battery
3. Deep cycle, no memory effect, highly efficient
4. Compact size and light weight: 1/2 size & weight of lead acid battery
5. Good performance at high temperature
|
Comment & FAQ
1.What is the payment term of the order?
A:T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
2.How to choose a right battery?
A: Tell us your demand, then our sales will recommend a suitable battery to you.
3.How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
4.Can you accept OEM and ODM Service?
A:Yes, we supply OEM&ODM service as clients requirement.
5.How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and Shipping.
|
Avaliable Models
MODEL | GP7230 | GP7240 | GP7260 | GP7270 | GP7275 | GP7280 | GP72100 | GP72125 | GP72140 | GP72180 |
Rate voltage(Vdc) | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
Rate capacity(AH | 30 | 40 | 60 | 70 | 75 | 80 | 100 | 125 | 140 | 180 |
Energy storage(KWH) | 2.16 | 2.88 | 4.32 | 5.04 | 5.4 | 5.76 | 7.2 | 9 | 10.08 | 12.96 |
Built in BMS(Yes/No) | Yes | |||||||||
Cycle life | DOD(≥1800 cycles to 85%DOD). | |||||||||
Months self discharge | ≤2% | |||||||||
Efficiency of charge | 100%at 0.2C | |||||||||
Efficiency of discharge | 96~99%at 1C | |||||||||
Charge voltage | 83.95±0.2V | |||||||||
Charge mode | 0.2C to 83.95V,then 83.95V,charge current to 0.02C (CC/CV) | |||||||||
Charge current(A) | 6 | 8 | 12 | 14 | 15 | 16 | 20 | 25 | 28 | 36 |
Max.Charge current(A) | 9 | 12 | 18 | 21 | 22.5 | 24 | 30 | 37.5 | 42 | 54 |
Charge cut-off voltage(VDC) | 83.95±0.2V | |||||||||
Contiunous current(A) | 6 | 8 | 12 | 14 | 15 | 16 | 20 | 25 | 28 | 36 |
Discharge cut-off voltage(VDC) | 83.95±0.2V | |||||||||
Charge temperature | 0 ℃to 45 ℃(32F to 113F)@60±25%Relative Humidity | |||||||||
Discharge temperature | -20 ℃ to 60 ℃(-4F to 140F)@60±25%Relative Humidity | |||||||||
Storage temperature | 0°℃to 40 ℃(32F to 104F)@60±25%Relative Humidity | |||||||||
IP class | IP63 | |||||||||
Material system | LiFePO4 | |||||||||
Case material | Metal | |||||||||
Dimensions:W*H*D(mm) | 360*210*180 | |||||||||
Weight | ||||||||||
Terminal | M8 | |||||||||
Protocol(Optional) | SMBus/RS485/RS232 | |||||||||
SOC(Optional) | NONE | |||||||||
The quality assurance period | 60 months | |||||||||
