Product Introduction

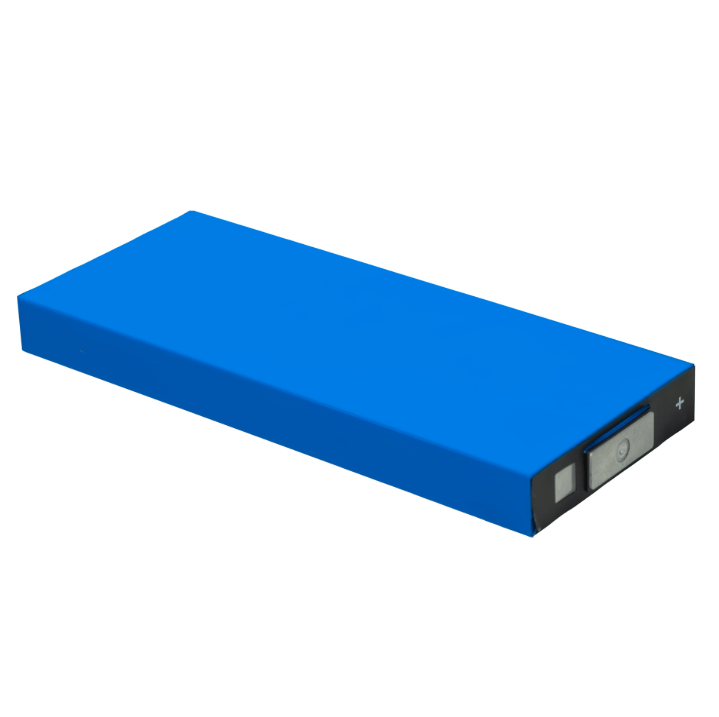

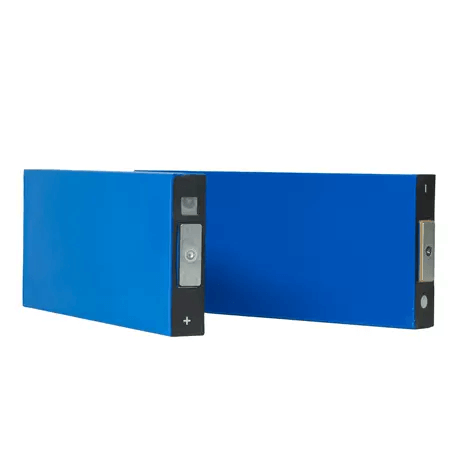

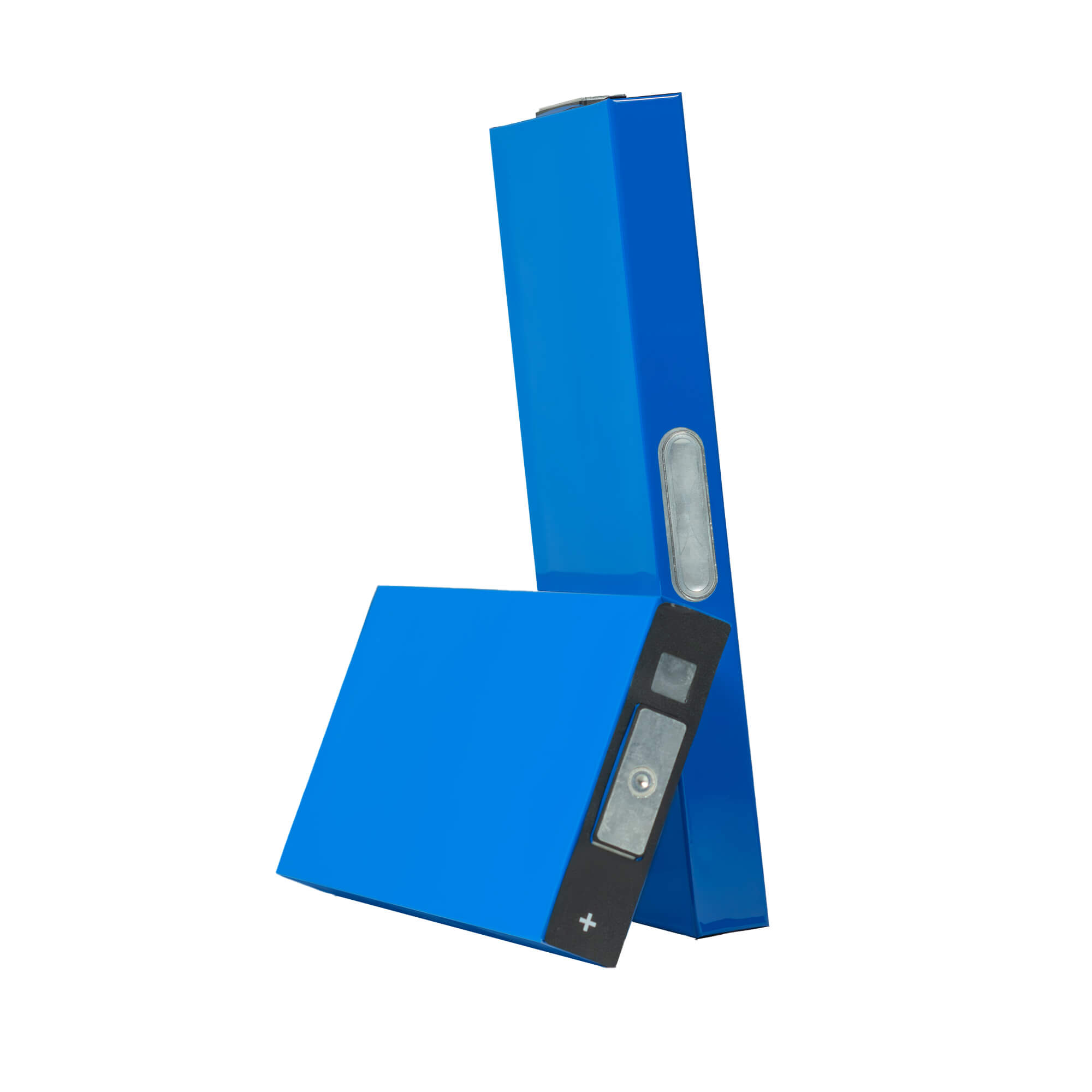

The Gotion 91.5Ah lithium-ion battery cell is designed to provide superior performance, high energy density, and long cycle life, making it ideal for various applications, including electric vehicles (EVs), energy storage systems, and industrial uses. With its advanced technology and robust design, this battery cell ensures optimal efficiency and longevity, helping users reduce energy costs and improve operational performance.
Product Advantage
High Energy Density: With a capacity of 91.5Ah, the Gotion battery offers high energy density, ensuring reliable performance for electric vehicles (EVs) and energy storage systems.
Long Cycle Life: Designed for long-lasting performance, the Gotion 91.5Ah battery cell offers a high cycle life, reducing the need for frequent replacements and increasing cost-efficiency.
Safe and Reliable: Equipped with advanced Battery Management Systems (BMS), the Gotion battery cell provides safety features such as overcharge protection, over-discharge protection, and thermal stability.
High Performance: This battery cell is optimized for high discharge rates and quick charging, making it suitable for demanding applications like electric vehicles, forklifts, and energy storage.
Eco-friendly: The Gotion battery is designed with environmentally friendly materials, supporting sustainable energy solutions and reducing environmental impact.
Technical Parameters
| 项目 Item | 条件/注释 Condition/Note | 规格 Specification |
容量* 0.33C/0.33C Capacity*0.33C/0.33C | 标准充电/放电， Std.charge/discharge | 最低容量 91.5AhMinimum 91.5Ah(Cmin) |
| 标称电压，Nominal voltage | 0.33C | 3.20V |
| 工作电压，Operating voltage | 持续充电/放电 Continuous charge/discharge 脉冲充电/放电 Peak charge/discharge | 2.5V~3.8V 2.0V-3.8V SOC 2.3V-3.8V >0℃ |
ACR*(交流内阻) | 25°C±2°C .17.0%SOC.1KHz | 0.3mΩ-0.6mΩ |
| DCR*(直流内阻) | 25°C±2°C 50%SOC,1.5C,10s | <1.1mΩ |
| Standard charge标准充电 | Constant current恒流 Up limited voltage 上限电压 Cut-ofcurrent 截至电流 Temperature 温度 | 0.33C 3.8V 0.05C 25°C±2°C |
| Standard discharge标准放电 | Constant current 恒流 Cut-ofvoltage 截止电压 Temmperature 温度 | 0.33C 2.5V 25°C±2°C |
| Temperature sensitivity温度特性 | Storage allowable temperature 存储温度范围 Operating allowable temperature 运行温度范围 | 40°C≤T≤60°C -30°C≤T≤55°C |
| Weight 重量 | 包含外包膜 w/ bule film | 1542+15g |
最大厚度* Maximum Cell thickness | 0.15Mpa @ 30s,30%S0C | 25.0士0.4mm |
备注:*生产日期后15 天内测量Remark:*measured within l5 days after the production date.
Product Uses
The Gotion 91.5Ah lithium-ion battery cell is versatile and can be used in various applications, including:
Electric Vehicles (EVs): Ideal for electric cars, motorcycles, and scooters, providing long-range, fast-charging, and efficient energy storage.
Energy Storage Systems: Perfect for home energy storage and commercial energy storage solutions, especially in solar energy and off-grid applications.
Industrial Equipment: Used in forklifts, AGVs, and other industrial machinery requiring high-capacity and reliable power sources.
Renewable Energy: Optimized for solar energy storage, allowing homeowners and businesses to store energy for use during peak demand times.
FAQ
The Gotion 91.5Ah lithium-ion battery cell is a high-performance energy storage solution designed for use in electric vehicles (EVs), energy storage systems, and industrial applications. With a 91.5Ah capacity, it offers long cycle life, high energy density, and reliable power, ensuring optimal performance in demanding applications.
Long Cycle Life: The Gotion 91.5Ah battery is designed to last for thousands of charge cycles, reducing the need for frequent replacements.
High Energy Density: Provides efficient power storage, making it ideal for electric vehicles, solar energy storage, and off-grid applications.
Advanced Safety Features: Equipped with BMS protection, the battery ensures safe usage with features like overcharge and thermal protection.
Quick Charging: Supports fast charging for quicker turnaround times in high-demand applications like EVs and forklifts.
The Gotion 91.5Ah lithium battery offers a long cycle life of up to 5000 cycles depending on usage and conditions. With proper care, it can last for many years, offering a reliable power source for electric vehicles and energy storage systems.
The Gotion 91.5Ah battery is versatile and can be used in:
Electric Vehicles (EVs), including electric motorcycles, scooters, and electric cars.
Energy Storage Systems, both for home storage and commercial use, ideal for solar energy storage.
Industrial applications, including forklifts, AGVs, and off-grid power systems.
Renewable energy applications, where efficient energy storage is critical.
Yes, the Gotion 91.5Ah lithium-ion battery is designed with advanced BMS protection to ensure safety during operation. It features built-in protection against overcharging, over-discharging, and overheating, which are critical for preventing safety hazards and ensuring long-term reliability.
