IFP50160116-102Ah
GOTION/GUOUXUAN
Product Introduction

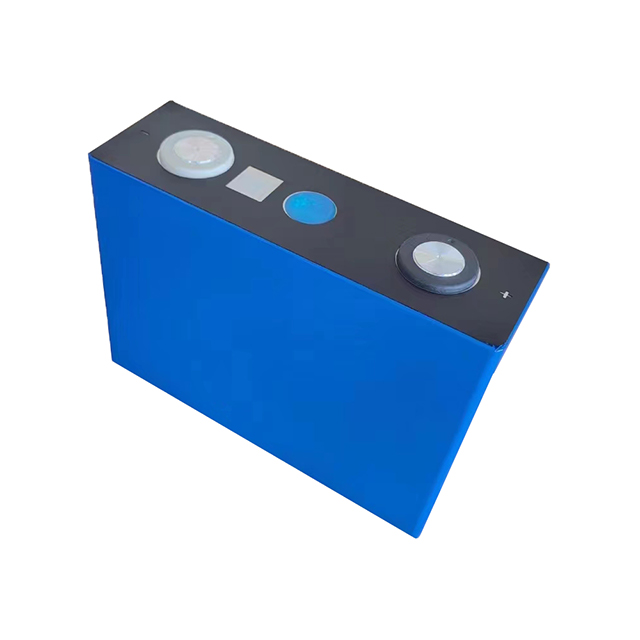

The Gotion IFP50160116-102Ah LiFePO4 Battery Cell is a high-performance lithium iron phosphate (LiFePO4) cell, designed to meet the demanding needs of electric vehicles (EVs), energy storage systems (ESS), and industrial applications. With a nominal capacity of 102Ah, it offers superior energy density, long cycle life, and enhanced safety, ensuring reliable power for a variety of high-demand use cases.
Key Features:
High Capacity: 102Ah for reliable power storage and extended performance
Long Cycle Life: Over 3,000 cycles at 80% depth of discharge (DOD)
Safety: Equipped with thermal stability and built-in protection mechanisms
Energy Efficiency: High energy density and low self-discharge rate
Wide Applications: Ideal for electric vehicles, renewable energy storage, solar batteries, UPS, and more
Guoxuan High-tech's 102Ah lithium iron phosphate battery cell is a high-capacity, high-safety, and high-reliability battery product suitable for electric vehicles (EVs), energy storage systems (ESSs), commercial transportation, and industrial equipment. Its ultra-long cycle life and excellent charge and discharge performance provide customers with stable and efficient energy solutions.
Product Advantage
Ultra-large capacity design
102Ah single cell capacity supports longer battery life and greater energy storage, providing excellent performance for diverse application scenarios.
Long cycle life
With a cycle life of over 4,000 times (80% DOD), long-term use is more economical and reduces replacement costs.
High energy density
High energy density supports more compact battery pack design and optimizes space utilization.
Reliable safety performance

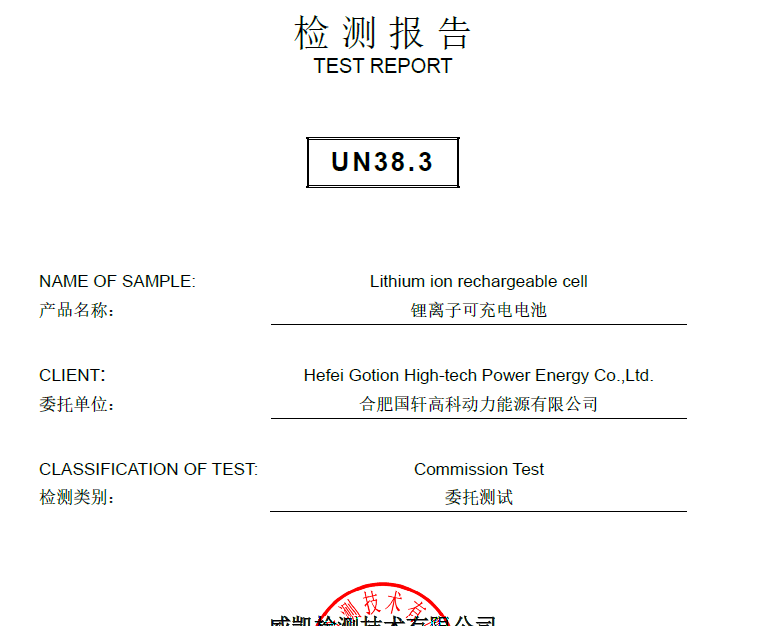

Passed UN38.3, CE, RoHS and other international certifications, with high thermal stability and anti-overcharge capability.
Technical Parameters
| 2.1 Standard Technical Parameters | ||
| Item | Specification | Condition／Notes |
| 2.1.1 Nominal Capacity | 102Ah | Refer to 4.1.1&4.1.2 standard charge and discharge procedure |
| 2.1.2 Nominal Voltage | 3.2V | |
| 2.1.3 Charge/Discharge Voltage Range | 2.0V~3.65V | T>0℃ |
| 1.8V~3.65V | T≤0℃，Forbid continuous charging | |
| 2.1.4 Weight | 1926±30g | |
| 2.1.5 Weight energy density | ≥168Wh/kg | 0.33C |
| 2.1.6 Volume energy density | ≥350Wh/L | 0.33C |
| 2.1.7 ACR | 0.27mΩ≤R≤0.4mΩ | 25℃±2℃ （17％±3％SOC） Fresh cell (17%±3%SOC) |
| 2.1.8 DCR | ≤1.5mΩ | 50%SOC@3C30S,25±2℃ |
Product Uses
Electric vehicle (EV) power battery
Provides strong power and long driving range for passenger cars, commercial vehicles and logistics vehicles.
Energy storage system (ESS)
Integrated into home, commercial and industrial energy storage systems, supports photovoltaic power generation and backup power supply, and improves energy efficiency.
Commercial transportation field
Suitable for high-power demand vehicles such as electric trucks and electric buses to achieve green and low-carbon transportation.
Industrial equipment and tools
Supports stable energy supply for high-performance electric forklifts, engineering equipment and other industrial electrical equipment.
Backup power supply and emergency system
As an efficient and stable backup power supply in communication base stations, medical equipment and data centers.
FAQ
1. What are the advantages of Guoxuan 102Ah battery cells?
Guoxuan 102Ah battery cells have high capacity, long life, high safety and excellent charging and discharging performance, which can meet the large demand in the power and energy storage fields.
2. What is the cycle life of this battery cell?
At 80% DOD (depth of discharge), the cycle life can reach more than 4,000 times, which is suitable for long-term use.
3. Can 102Ah battery cells be used for heavy vehicles?
Yes, 102Ah battery cells are suitable for heavy-duty electric vehicles, including electric trucks and electric buses, to meet high power requirements.
4. How to ensure the safety of battery cells?
Through rigorous testing and certification, including needle puncture, extrusion, and short-circuit tests, safety in various scenarios is ensured.
5. What are the scenarios for energy storage systems?
Suitable for photovoltaic energy storage, microgrid systems, home or industrial energy storage, to help achieve a balance of electricity demand.
6. Does it support bulk purchases and after-sales service?
We support bulk purchases and provide comprehensive technical support and after-sales services to ensure that customers have no worries.
Contact us today for a quote or to learn more about Gotion IFP50160116-102Ah LiFePO4 Battery Cell!
