Product Description

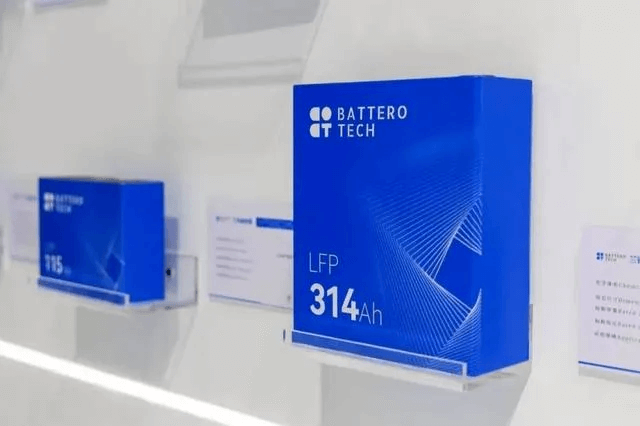

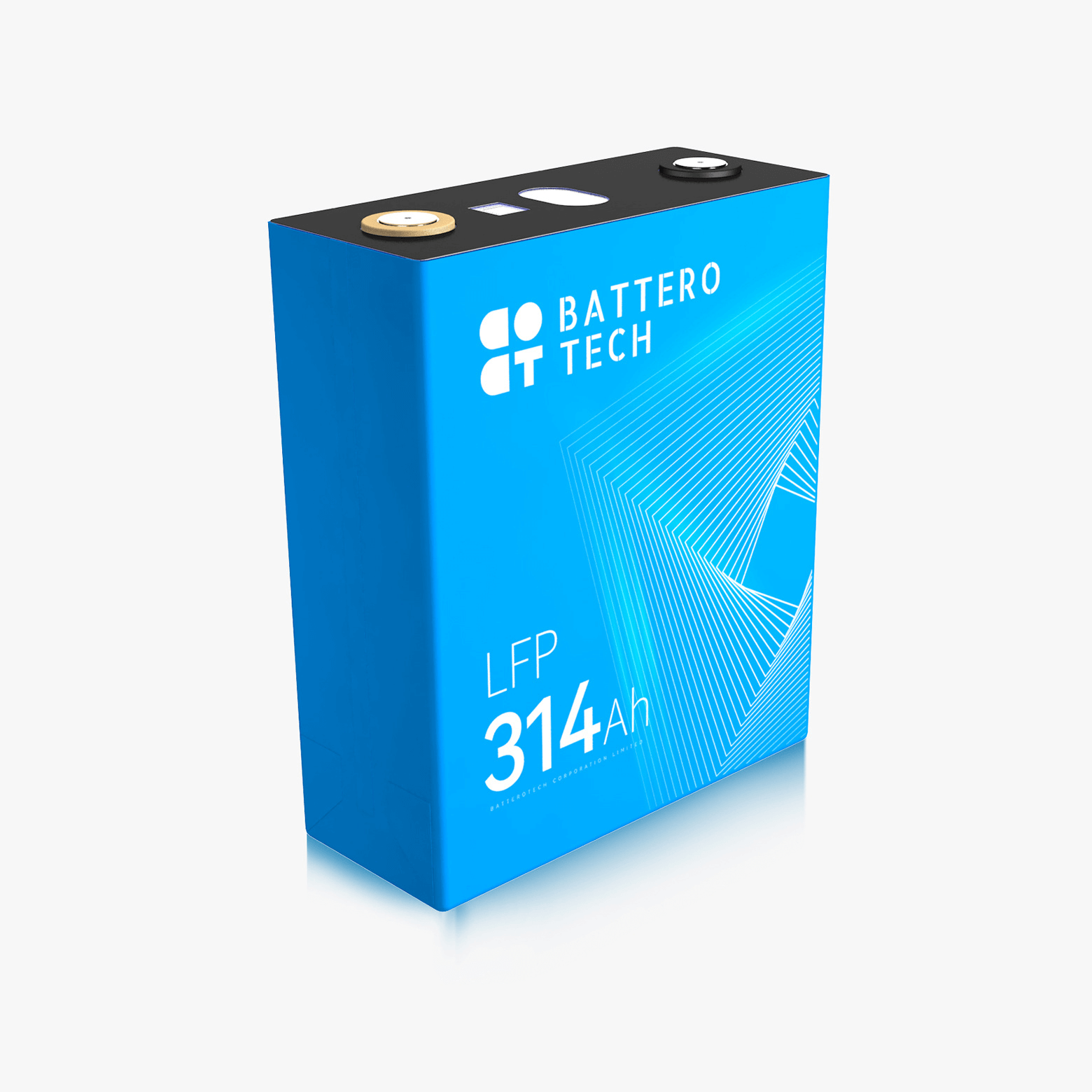

The REPT 314Ah Lithium Iron Phosphate (LiFePO4) battery cell, manufactured by Battero Tech, represents a significant advancement in high-capacity energy storage technology. With a massive 314Ah typical capacity and a nominal voltage of 3.2V, this cell is designed to serve the most demanding applications including grid-scale energy storage systems, commercial and residential energy backup solutions, and electric mobility platforms such as heavy-duty EVs, electric buses, and forklifts.
With its proven performance, extended cycle life, and excellent safety profile, the REPT 314Ah cell is the preferred choice for B2B clients seeking scalable and reliable lithium battery solutions.
| Parameter | Specification |
|---|---|
| Manufacturer | Battero Tech |
| Model No. | 314AH |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 3.2V |
| Typical Capacity | 314Ah |
| Energy | ~1004.8Wh |
| Internal Resistance (AC Impedance) | ≤0.25mΩ |
| Cycle Life | ≥8000 cycles @ 80% DOD |
| Standard Charge/Discharge Current | 0.5C / 0.5C |
| Max Continuous Charge/Discharge | 1C / 2C |
| Pulse Discharge Current (60s) | Up to 3C (942A) |
| Recommended SOC Window | 5% ~ 95% |
| Operating Temperature (Charge) | 0℃ ~ 60℃ |
| Operating Temperature (Discharge) | -30℃ ~ 60℃ |
| Storage Temperature (1 Month) | -40℃ ~ 60℃ |
| Storage Temperature (1 Year) | 0℃ ~ 35℃ |
| Self-Discharge Rate | <3% per month |
| Cell Dimensions (L x W x H) | 207.7 x 71.92 x 174.26 mm |
| Weight | ~5.5kg |
| Certifications | MSDS, UN38.3, CE |
| Warranty | 5 Years |
At 314Ah, the REPT cell is engineered for applications where space and energy density are critical. Whether integrated into modular storage cabinets or large-scale battery packs, the high amp-hour rating allows for fewer cells per system, reducing system complexity and interconnection losses.
With a life cycle rating of over 8000 cycles at 80% Depth of Discharge (DOD), the REPT 314Ah cell guarantees long-term durability and minimal degradation, making it ideal for systems with daily cycling like solar energy storage and commercial power backup.
With support for 2C continuous discharge and up to 3C pulse discharge for 60 seconds, the cell handles power surges without performance loss. This makes it ideal for applications such as forklifts, peak shaving systems, and uninterruptible power supplies (UPS).
Built on LiFePO4 chemistry, the REPT 314Ah cell features superior thermal and chemical stability, minimizing risks of thermal runaway, explosion, or fire. It conforms to international certifications like MSDS, UN38.3, and CE, ensuring safe handling and global transportation.
The cell performs reliably in extreme conditions, operating from -30℃ to 60℃ for discharge scenarios. This makes it suitable for remote installations and harsh industrial environments.
High energy density and cycle life make this cell a top choice for grid balancing, frequency regulation, and renewable energy integration.
Integrate the REPT 314Ah into wall-mounted or cabinet-type systems to store solar or off-peak energy for peak-hour use, reducing electricity costs and enhancing grid independence.
From heavy-duty EVs and electric buses to airport ground vehicles, the cell supports high current demands while maintaining stability and long life.
Ensure uninterrupted operation of communication towers, data centers, and hospitals with high-discharge, long-life lithium battery banks.
Use in automated guided vehicles, forklifts, and other electric-powered industrial machinery requiring robust, safe, and efficient energy sources.
GBE Battery provides complete battery pack integration solutions using REPT 314Ah cells. Services include:
Custom Voltage Systems: 12V, 48V, 96V, and beyond
Advanced BMS Options: Passive or active balancing, CAN/RS485/RS232 communication
Thermal Management: Air cooling, liquid cooling, or heating elements
Enclosure Customization: IP65/IP67-rated cabinets, metal or plastic cases
Testing and Quality Control: 100% aging, capacity matching, and safety inspection
Direct Factory Channel: We source REPT 314Ah cells directly from certified channels with traceable serial codes.
Guaranteed A-Grade Quality: Every cell comes with original factory test reports.
Flexible MOQ and Fast Delivery: Sample orders available. Bulk delivery with stable lead times.
Engineering Support: Professional team supports your custom BMS, structural design, and certification requirements.
Global Shipping: MSDS + UN38.3 + CE ensures safe transport via air or sea.
