Product Description

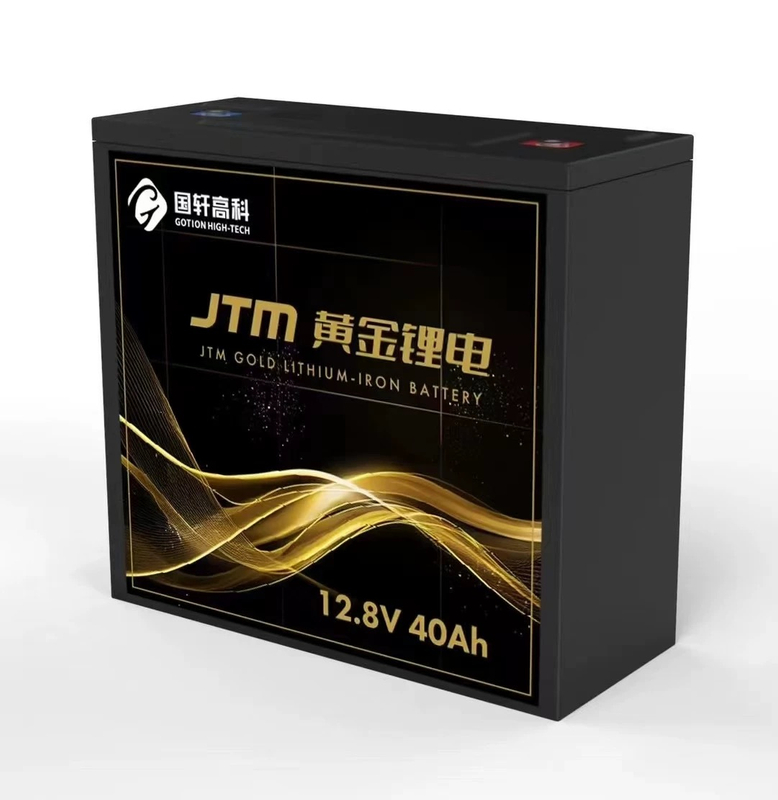

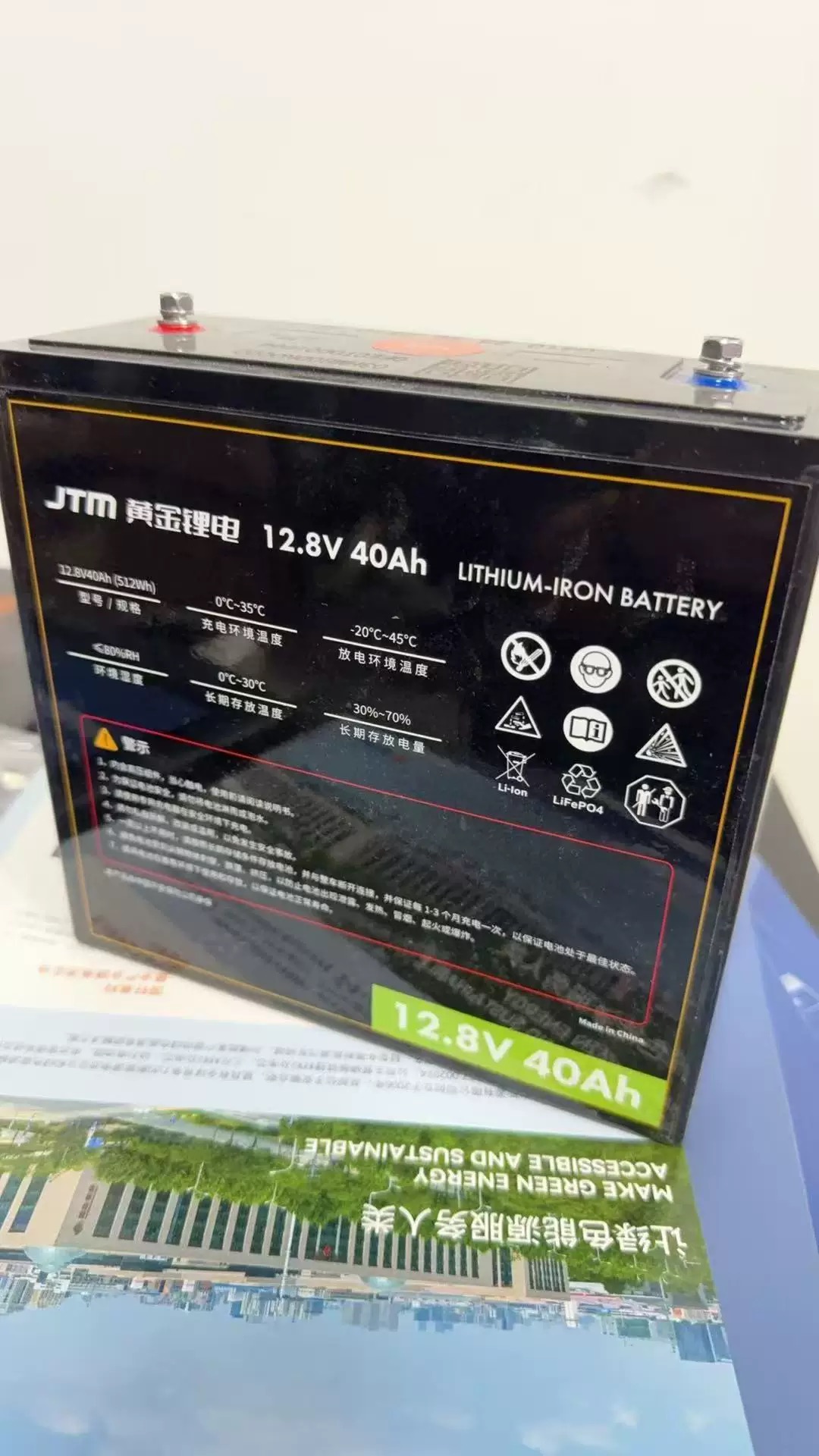

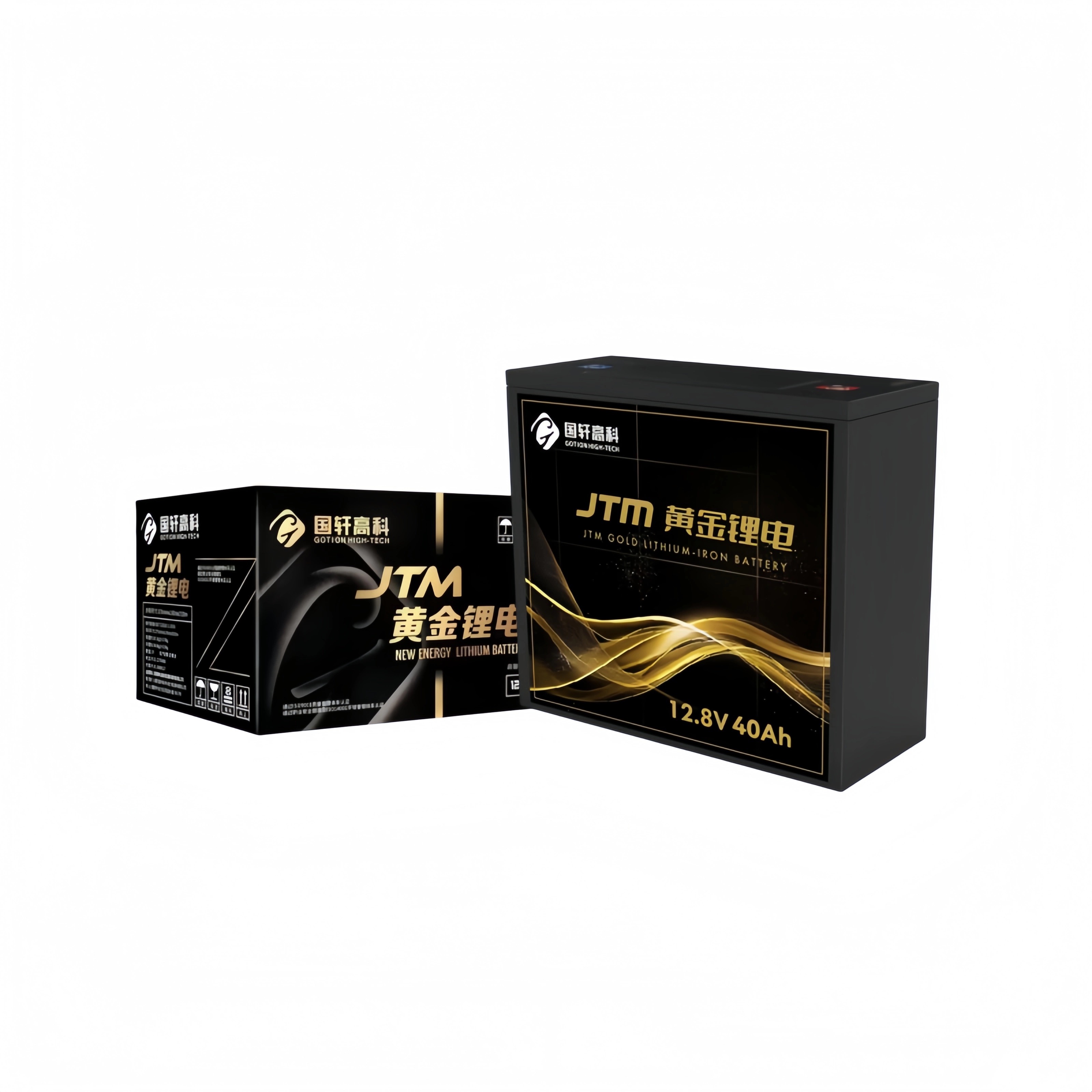

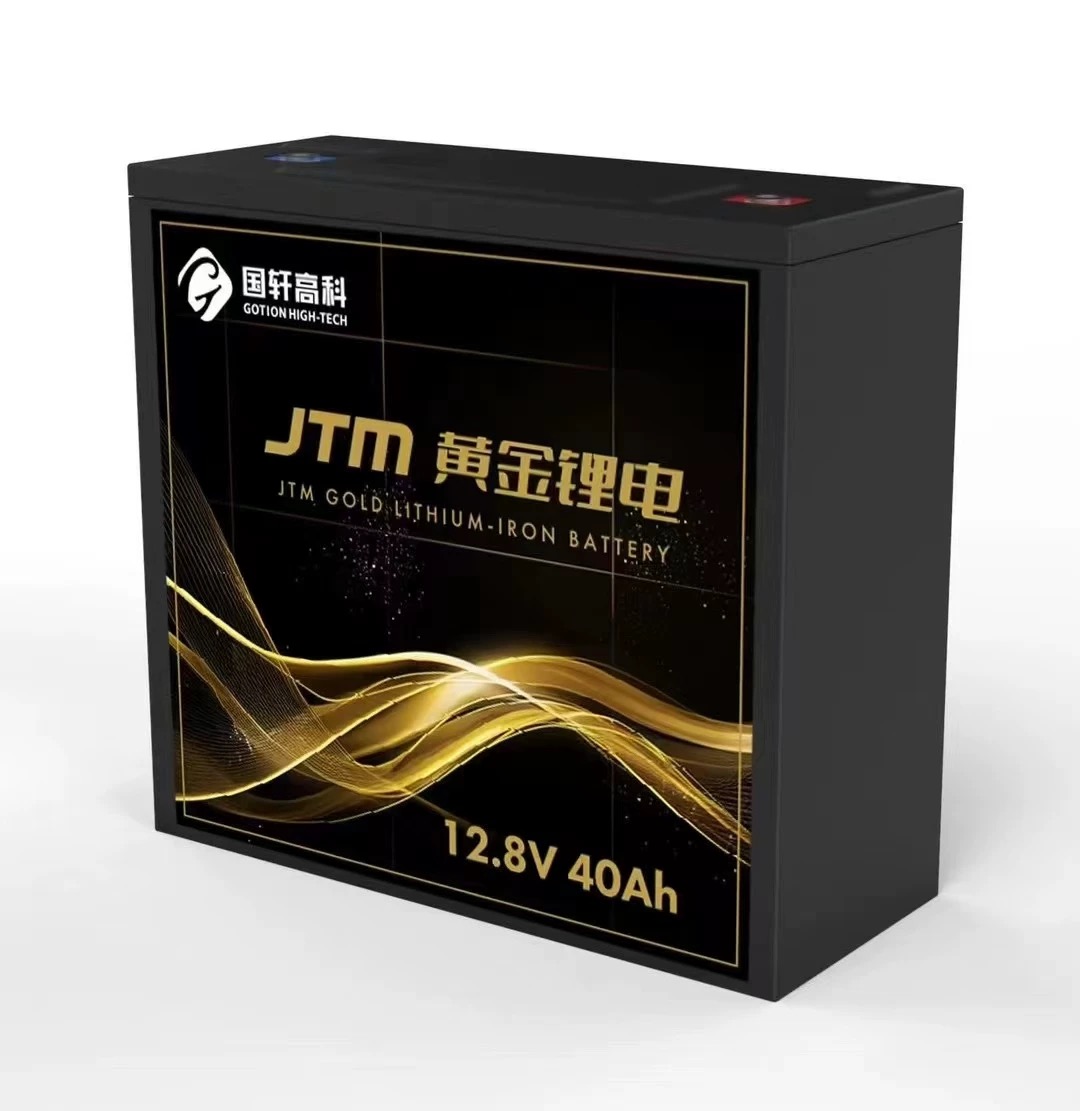

Model: GOTION JTM Series – 12V 40Ah
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage: 12.8V
Nominal Capacity: 40Ah
Configuration: 1P4S
Dimensions: 181 × 77 × 170 mm
Weight: Approx. 3.88 kg
The GOTION JTM 12.8V 40Ah lithium battery is specifically designed as a direct replacement for traditional 12V lead-acid batteries used in electric scooters and two-wheelers. With a compact size of 181×77×170mm, this scooter battery pack offers plug-and-play compatibility for over 90% of the electric scooters in the global market.
This high-performance lithium battery for scooter applications delivers extended runtime, higher power output, improved cycle life, and zero maintenance — all in a lighter and safer design.
✅ Perfect for lead-acid battery replacement in two-wheeled electric vehicles
✅ Higher capacity (40Ah) for extended range and stronger performance
✅ Drop-in installation with industry-standard size
✅ Fast charging up to 39A and longer cycle life
✅ A-grade LiFePO₄ cells ensure stability and safety
✅ Fully customizable with Bluetooth, CAN/RS485, display, GPS (optional)
Appearance | No breakage, cracks, dirt, deformation, or leakage | |
Dimensions | 181 × 77 × 170 mm | Terminals not included |
Weight | Approx. 3.88 kg ± 0.01 | |
Nominal Voltage | 12.8V | |
Nominal Capacity | 40Ah | 25°C, 0.5C charge, 100% DOD |
Cell Chemistry | Lithium Iron Phosphate (LiFePO₄) | |
Internal Configuration | 1P4S |
Max Continuous Charging Current | 39A | |
Max Charging Voltage | 14.6V | |
Charging Temperature Range | 0–55°C | |
Optimal Charging Temperature | 10–35°C |
Max Continuous Discharging Current | 20A | |
Cut-off Discharge Voltage | 10.0V | |
Discharging Temperature Range | -20–55°C | |
Optimal Discharging Temperature | 10–35°C | |
Rated Capacity at Room Temperature | ≥40Ah @ 1C | Voltage range: 10.0V–14.6V |
| Product | Motor Power | Average Speed | Range |
|---|---|---|---|
| JTM Lithium Battery 64V20Ah | 500W | 30 km/h | 81 km |
| JTM Lithium Battery 76.8V20Ah | 800W | 30 km/h | 80 km |
| JTM Lithium Battery 51.2V40Ah | 600W | 29 km/h | 101 km |
| JTM Lithium Battery 64V40Ah | 600W | 31 km/h | 136 km |
| JTM Lithium Battery 76.8V40Ah | 1200W | 31 km/h | 138 km |
Electric scooters and mopeds (12V series-connected configurations)
Lead-acid battery retrofit projects for two-wheelers
Battery replacement for delivery, ride-sharing and rental fleets
Off-grid power applications and backup systems using 12V architecture
GBE Battery is a trusted supplier of scooter battery packs and industrial lithium power systems. As a partner of GOTION, we deliver:
Genuine A-grade lithium cells
Fast production and shipment
OEM/ODM customization options
Professional technical support
Solutions for 36V, 48V, 60V, 72V lithium scooter battery systems
Contact us today to request a quote or technical datasheet.
