Product Description

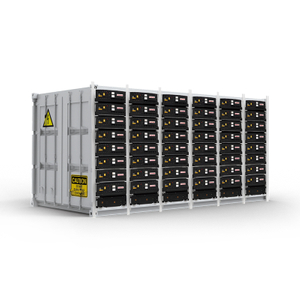

The GBE-5016 Commercial Energy Storage System is a cutting-edge liquid-cooled, high-capacity Battery Energy Storage System (BESS) designed for industrial, utility-scale, and large commercial applications. With a 5,016kWh energy capacity and 2,500kVA rated power, this system delivers exceptional efficiency (≥98%), long cycle life, and military-grade safety—making it ideal for peak shaving, renewable integration, microgrids, and backup power solutions.
Engineered with LiFePO4 (LFP) 314Ah cells, advanced liquid cooling, and multi-stage fire protection, the GBE-5016 ensures maximum uptime, safety, and ROI for demanding energy storage applications.
System Capacity: 5,016kWh – Ideal for large-scale energy storage
DC Efficiency: ≥90% (excluding liquid cooling) – Minimizes energy loss
AC Conversion Efficiency: ≥98% – Industry-leading performance
Wide Voltage Range: 1,040-1,497.6V DC – Flexible grid integration
Multi-Stage Fire Protection:
Gas fire suppression
Flammable gas detection
Emergency ventilation
Water-based fire suppression (backup)
IP55 Protection (Battery Enclosure) – Dust & water-resistant for harsh environments
Liquid Cooling System – Maintains optimal temperature, extending battery life
Operating Temperature: -20°C to 50°C – Suitable for extreme climates
Humidity Tolerance: 0-95% RH (non-condensing) – Works in high-moisture environments
Long Lifespan: 6,000+ cycles at 80% DoD – Lower total cost of ownership (TCO)
Grid Voltage: 10kV/35kV – Seamless utility-scale integration
Frequency: 50Hz – Compliant with global standards
Power Factor Adjustment: -1 to 1 – Optimizes grid stability
Low Transient Rate (<1.5%) – Smooth power delivery
| Parameter | Specification |
Dimensions (L×W×H) | 6,250 × 2,800 × 3,000 mm |
Weight | <4.5 tons |
Operating Temperature | -20°C to 50°C |
Humidity Range | 0-95% RH (non-condensing) |
Cooling Method | Liquid Cooling |

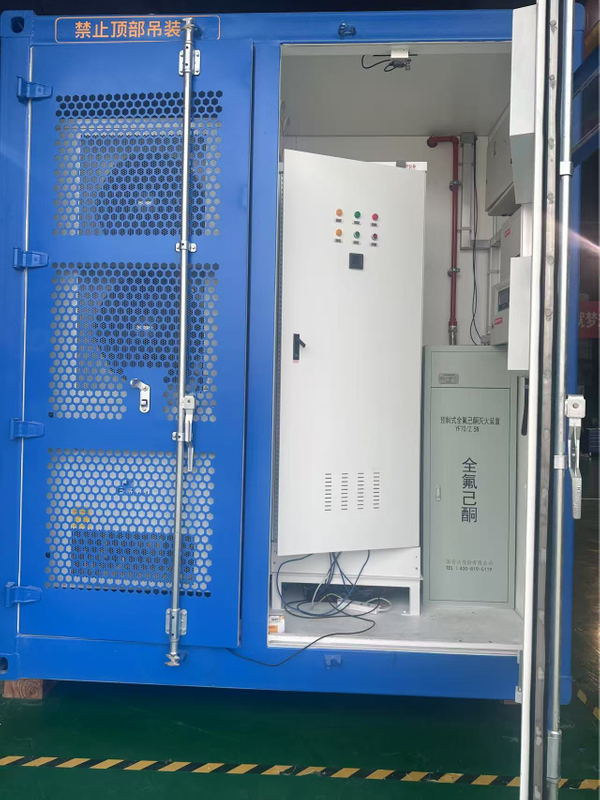

Fire Protection | Gas suppression + Flammable gas detection + Emergency ventilation + Water backup |
Enclosure Protection | IP55 (Battery compartment) |
Communication Protocol | Modbus TCP / CAN |
Certifications | GB/T 36276, GB/T 34131 |
| Parameter | Specification |
Nominal Capacity | 5,016 kWh |
DC Voltage Range | 1,040-1,497.6V |
Cell Configuration | 1P525×12×8 |
Pack Capacity | 52.25 kWh |
Pack Voltage | 166.4V |

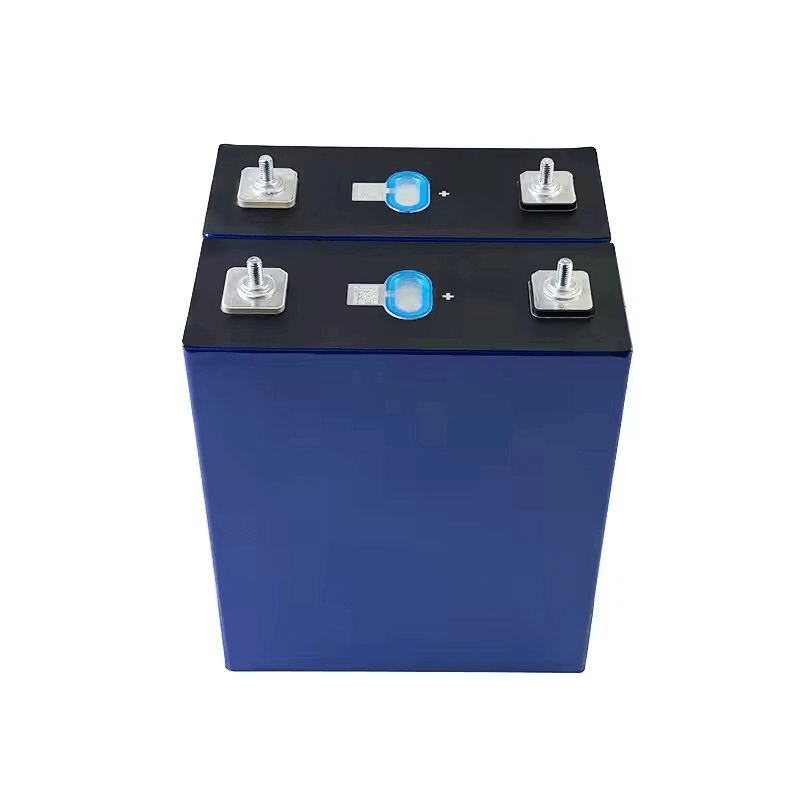

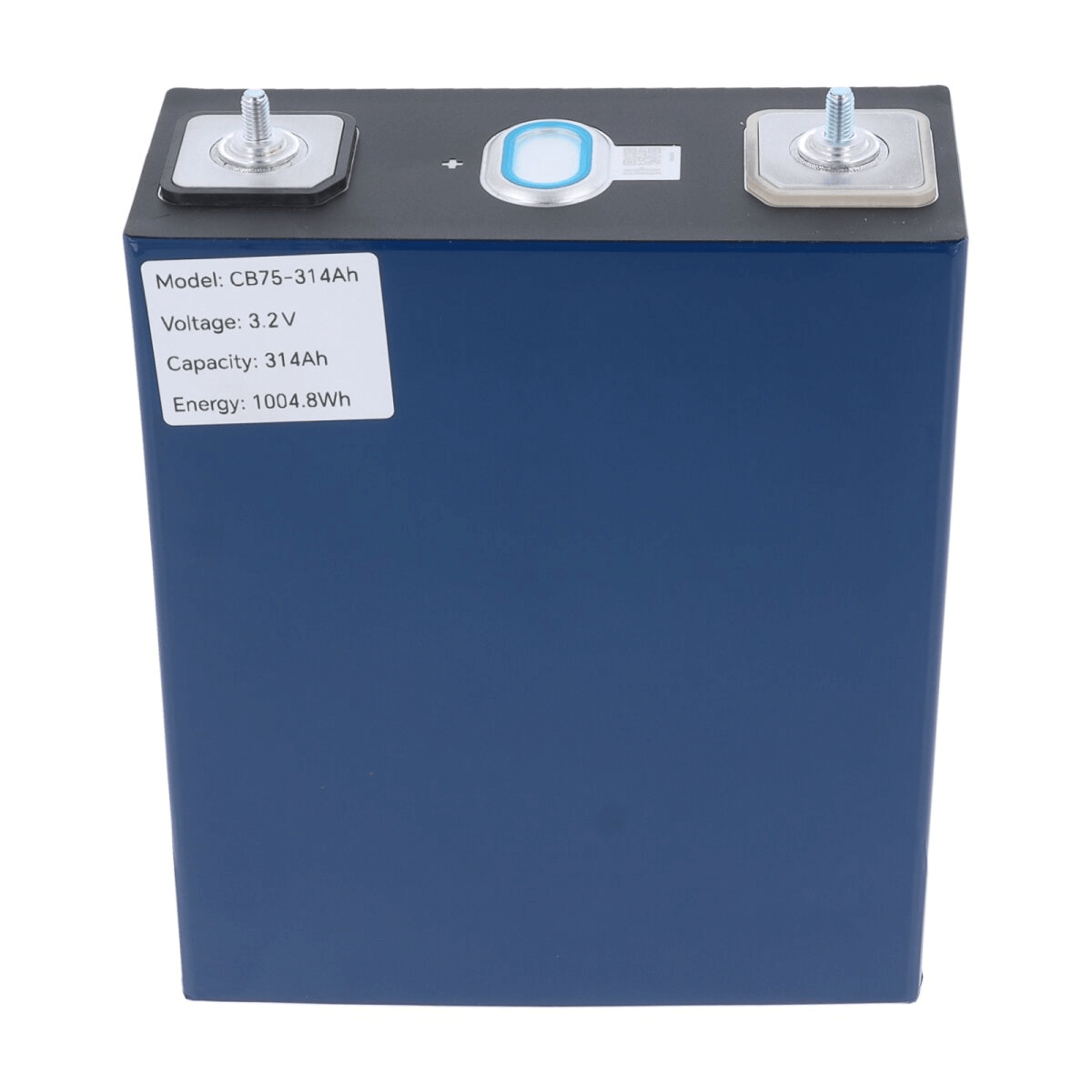

Cell Type | LFP (LiFePO4), 3.2V/314Ah |
| Parameter | Specification |
Conversion Efficiency | ≥98% |
Grid Voltage | 10kV / 35kV |
Frequency | 50Hz |
Rated Power | 2,500 kVA |
Power Factor Range | -1 to 1 (adjustable) |
Transient Rate | <1.5% |
DC Component | <0.5% |
Isolation Method | Transformer isolation |
Voltage Transformation | 690V / 10.5kV |
✅ Higher ROI – 5,016kWh capacity reduces cost per kWh over time
✅ Ultra-Safe – Multi-stage fire protection prevents thermal runaway
✅ Longer Lifespan – Liquid cooling ensures stable performance in extreme conditions
✅ Smarter Integration – Modbus TCP/CAN protocols enable seamless EMS/SCADA connectivity
✅ Grid-Friendly – <1.5% transient rate ensures stable power quality
✔ Industrial Peak Shaving – Cut energy costs by storing off-peak power
✔ Utility-Scale Storage – Support grid stability & renewable integration
✔ Microgrids & Off-Grid Systems – Reliable backup for critical facilities
✔ Solar/Wind Hybrid Projects – Smooth out intermittent renewable generation
To maximize visibility, we recommend targeting:
"5MWh BESS for industrial use"
"High-capacity LiFePO4 energy storage system"
"Utility-scale battery storage 10kV"
"Best liquid-cooled commercial BESS"
"Industrial energy storage with fire protection"
"Buy 5000kWh battery storage system for factory"
"LFP battery storage with ≥98% efficiency"
"GBE industrial BESS supplier with IP55 rating"
Interested in deploying the GBE-5016 Commercial Energy Storage System? Contact our experts for a free energy assessment & ROI analysis!
