Product Description

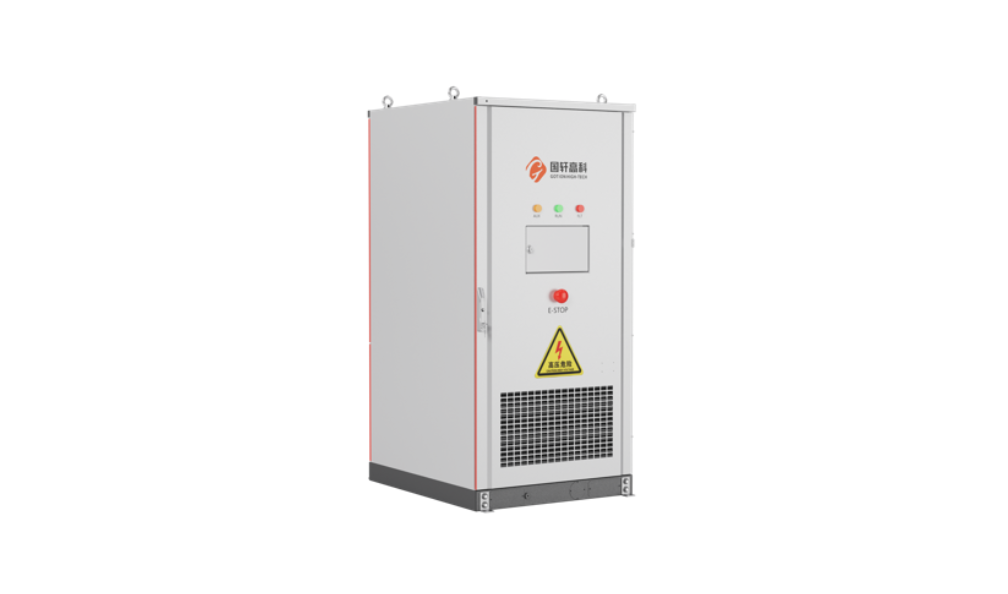

Model: ESC-R125-261-CE
Powered by Gotion 314Ah A-Grade LiFePO4 Cells
The ESC-R125-261-CE is an AC-integrated all-in-one battery energy storage system designed for commercial and industrial applications.
With a capacity of 261 kWh and a rated power of 125 kW, it provides reliable and efficient energy storage for modern power systems. Built with Gotion LFP battery technology, the system ensures long operational life and high safety standards.
Its integrated design combines a Battery Management System (BMS), Power Conversion System (PCS), and an external Energy Management System (EMS), enabling intelligent coordination, real-time monitoring, and remote diagnostics. Advanced liquid cooling enhances thermal stability, reduces energy losses, and extends system lifetime, while simplifying installation and maintenance.
The system is suitable for a wide range of applications, including commercial and industrial energy storage, solar integration, data center backup, microgrids, and distribution-level storage. With high efficiency, robust safety features, and scalable design, it offers a flexible and future-proof solution for modern energy infrastructure.
参数名称 | 技术规格 |
Model (型号) | ESC-R125-261-CE |
Cell Type (电芯类型) | LFP-314Ah |
Grouping Mode (成组方式) | 1P52S*5 |
Charge/Discharge Rate (充放电倍率) | 0.5P@25°C |
Nominal Energy (kWh) (标称能量) | 261 |
Voltage Range (V) (电压范围) | 728-936 |
AC Side (交流侧) | |
AC Voltage (V) (交流电压) | 400 (-15%~15%) |
Rated Power (kW) (额定功率) | 125 |
PCS Maximum Efficiency (%) (PCS 最大效率) | 99 |
Total Harmonic Distortion Ratio (%) (总谐波畸变率) | <3 |
System Parameters (系统参数) | |
Work Temp Range (°C) (工作温度范围) | -30~50 (> 45°C derating) |
Work Humidity Range (%) (工作湿度范围) | 5~95 |
Cooling Mode (冷却方式) | Liquid-cooled (液冷) |
Altitude (m) (海拔高度) | ≤3000 (>2000 derating) |
Maximum System Efficiency (%) (最大系统效率) | 90 |
System Cycle Life (系统循环寿命) | > 8000, 0.5c@25°C, 90%DOD |
Fire Suppression System (消防系统) | Aerosol FSS (气溶胶) |
Ingress Protection (防护等级) | IP55 |
Communication Port (通信接口) | RS485、Ethernet*2 |
Communication Protocol (通信协议) | Modbus/MQTT |
Certification (认证) | GB/T36276、IEC62619、IEC62477、IEC61000、UN38.3 |
Dimension (W \times D \times H)mm (尺寸) | 1120 \times 1350 \times 2420$mm |
Weight (T) (重量) | 2.6 |
While others rely on air cooling, the ESC-R125-261-CE uses an intelligent liquid-cooling circuit.
Precision Control: Maintains cell temperature variance within ≤3°C.
The Result: Prevents thermal degradation and maintains a high round-trip efficiency (RTE) of 90%, even in the heat of an Australian summer or a Southern US climate.
We prioritize your site’s safety with a multi-layered defense:

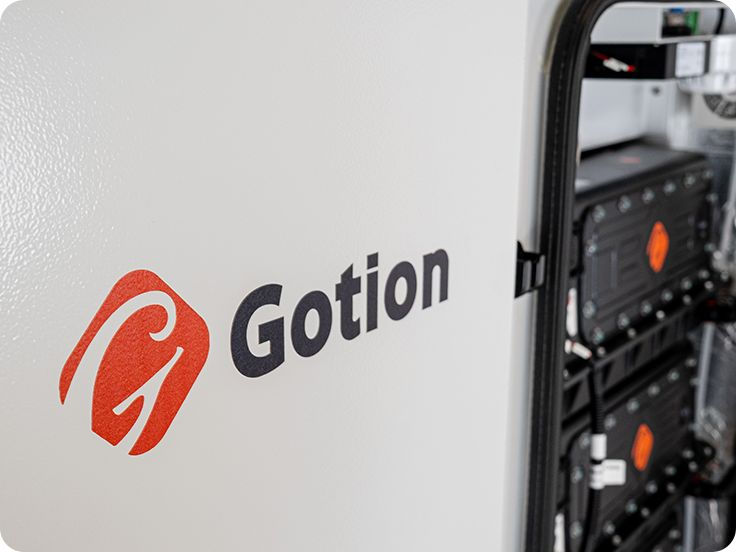

Level 1 (Cell): Gotion’s high-stability 314Ah LFP cells.
Level 2 (Pack): Individual pack-level monitoring and IP67 sealing.
Level 3 (System): Aerosol-based fire suppression with 1.5-hour fire-rated cabinetry.
Level 4 (Electrical): Millisecond-level insulation detection and rapid shutdown.

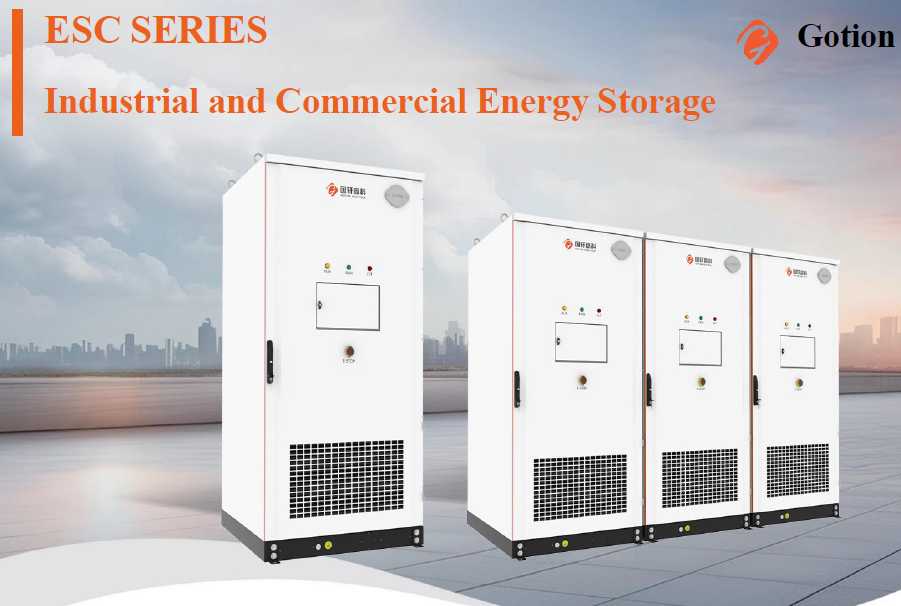

Time is money. The ESC series is a fully integrated "cabinet-to-grid" solution.
Compact Footprint: Only 1.51 m² required per unit.
Parallel Ready: Easily scale from 261kWh to multi-MWh microgrids by paralleling units.
Ease of Logistics: Integrated lifting lugs and forklift access for fast site placement.
Industrial Plants: Reduce peak demand charges and lower electricity bills.
EV Charging Hubs: Support high-power ultra-fast charging without upgrading the local grid.
Data Centers: Reliable, high-density backup power for critical infrastructure.
Commercial Buildings: Maximize solar self-consumption and achieve ESG goals.
Ready to Optimize Your Energy Costs? Join leading enterprises worldwide in securing a sustainable energy future. Our engineers are ready to provide a customized ROI analysis for your project.
