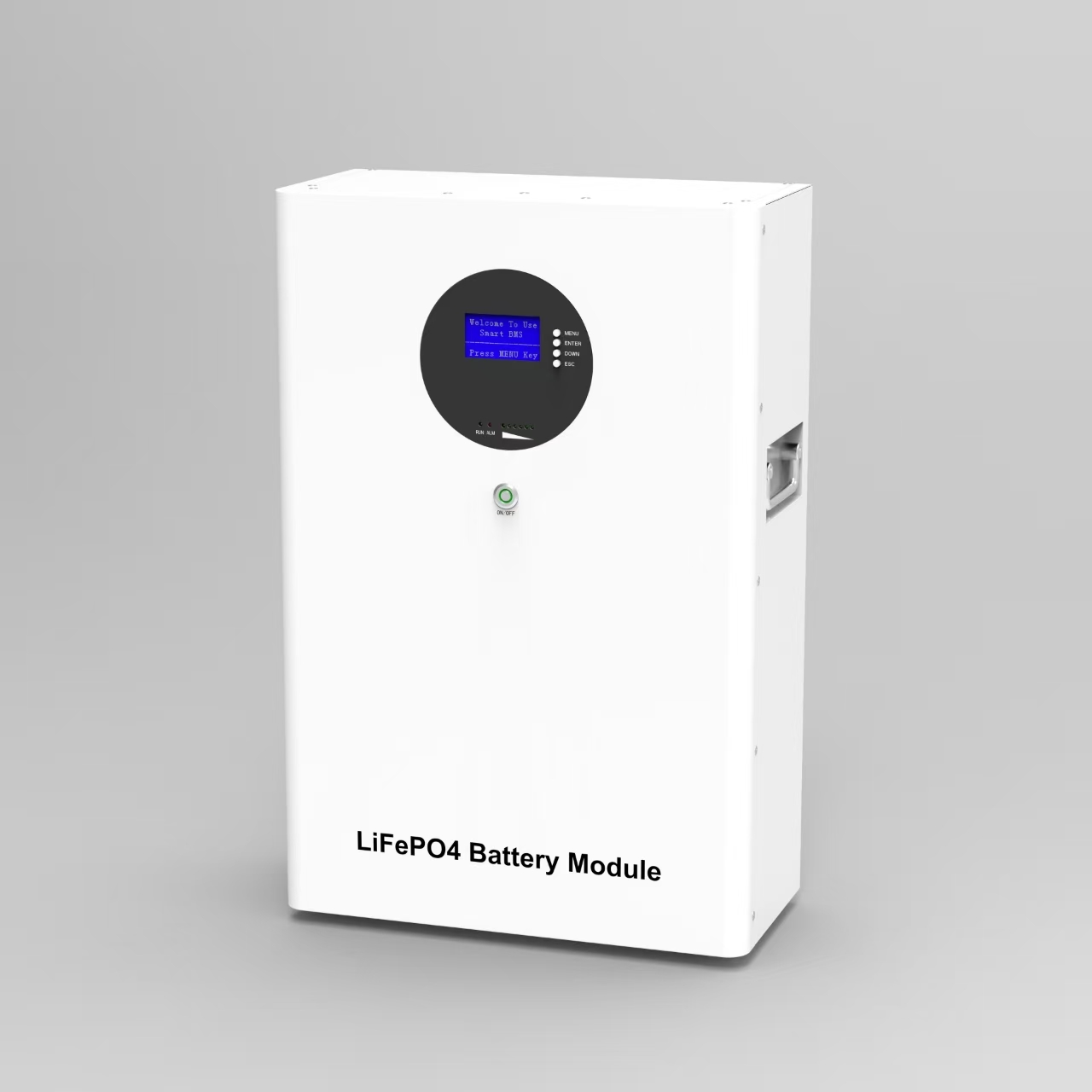

5Kw--10Kw home energy storage
Product Introduction
The GBE home energy storage system is designed for backup power at home, outdoors or in small offices. Whether used to supplement grid power or solve power outage problems, the system can provide efficient power storage and stable output.
Main uses: Suitable for household power balance, peak-valley power price balance, emergency backup power supply and other application scenarios.
Product Advantage
Product features:
Larger capacity supply equipment cabinet
No active cooling system is required
High operational reliability
They live for more than 10 years at +25°C
Optimal management
In line with the RoHS
Technical Parameters
| MODEL | GBE4850HW | GBE4880HW | GBE48100HW | GBE48120HW | GBE48150HW | GBE48200HW |
| Rate voltage((V) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Rate capacity(AH) | 50 | 80 | 100 | 120 | 150 | 200 |
| Energy storage(KWH) | 2.56 | 4.096 | 5.12 | 6.144 | 7.68 | 10.24 |
| Cycle life | ≥6000 cycles to 85%DOD | |||||
| Months self discharge | ≤2% | |||||
| Efficiency of charge | 100%at 0.2C | |||||
| Efficiency of discharge | 96-99%at 1C | |||||
| Charge voltage | 58.4 | |||||
| Charge mode | 0.2C to 58.4V,then 58.4V,charge current to 0.02C (CC/CV) | |||||
| Charge current(A) | 10 | 16 | 20 | 24 | 30 | 40 |
| Max.Charge current(A) | 50 | 80 | 100 | 120 | 120 | 200 |
| Charge cut-off voltage((V) | 58.4 | |||||
| Continuous current(A) | 50 | 80 | 100 120 | 120 | 200 | |
| Discharge cut-off voltage((V) | 44.8 | |||||
| Charge temperature | 0℃to45℃(32F to 113F)@60±25%Relative Humidity | |||||
| Discharge temperature | 20 ℃to60 ℃(4Fto 140F)@60±25%Relative Humidity | |||||
| Storage temperature | 0℃to40 ℃(32Fto 104F)@60±25%Relative Humidity | |||||
| IP class | IP43 | |||||
| Material system | LiFePO4 | |||||
| Case material | Metal | |||||
| Case Type | Rack Wall Mount | |||||
| Pack Dimensions L*W*H(mm) | 455*390*150 | 570*410*155 | 570*410*155 | 600*450*190 | 860*485*190 | 860*485*190 |
| Package Dimension L*W*H(mm) | 610*485*250 | 610*485*250 | 610*485*250 | 675*525*265 | 950*575*250 | 950*575*250 |
| Net Weight(kg | 28.3 | 40.4 | 45.0 | 48.9 | 67.6 | 97.6 |
| Gross Weight(kg | 31.2 | 42.7 | 48.2 | 52.7 | 70.1 | 92.6 |
| Terminal | M8 | |||||
| Protocbl(Optional) | CAN Bus/RS485/RS232 | |||||
| SOC(Optional) | LED/LCD | |||||
| The quality assurance period | 60 months | |||||
Product Uses
Application
Emergency power supply: Provide continuous power supply in case of power outage in the home.
Peak-valley electricity price strategy: Charge at low electricity prices and use energy storage at peak electricity prices to save electricity bills.
Photovoltaic power generation combination: Used in conjunction with solar power generation systems to achieve storage and use of green energy.
FAQ
1What household appliances can this energy storage system support?
GBE household energy storage system can support most household appliances, including lighting, refrigerators, washing machines, TVs, etc. The specific usage time depends on the amount of energy stored and the power requirements of the appliances.
2How to use it with a solar energy system?
This energy storage system can be seamlessly integrated with a household solar energy system. Use solar energy to generate electricity and store electricity during the day, and use the energy storage system's electricity at night or during power outages. Our technical team can provide configuration guidance during installation.
3. Can it support both grid and solar energy at the same time?
Yes, this product supports dual-mode power supply from the grid and solar energy. When the grid power is interrupted, the energy storage system will automatically switch to solar power storage mode to ensure continuous power supply.
