Ganfeng 100Ah Lifepo4 Battery Cells

Quantity:
Availability:





Inquire Add to Basket

Product Description

[Product Overview]
The Ganfeng 100Ah Prismatic LiFePO₄ Cell is a robust, high-capacity lithium iron phosphate battery cell designed for demanding energy storage and electric mobility applications. Built with stable LFP chemistry, this cell offers superior safety, low self-discharge, and exceptional durability, even under high-current or deep-cycle conditions.

At GBE Battery, we supply only A-grade Ganfeng cells, each with original QR code, factory test report, and support for custom battery packs with BMS, active/passive balancing, CAN/RS485 communication, heating/cooling systems, and more.

Get Quotation

Product Advantage

Long Service Life

Over 4000 cycles @ 80% DOD means excellent ROI and long-term performance.

High Safety Standard

Inherently stable LFP chemistry with multiple safety layers and overcharge protection.

Wide Application Range

Performs well in high/low temperature, supports large pack configurations for EVs or ESS.

⚙️ Flexible Integration

Ideal for use in custom battery systems – from single packs to large battery banks.

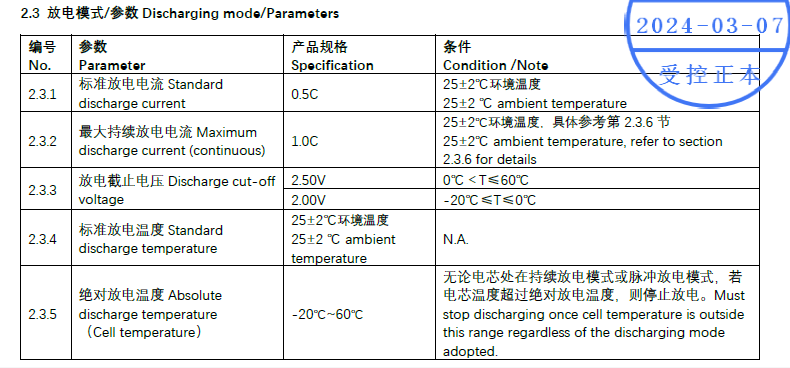

Technical Parameters

Item	Specification
Model	Ganfeng 3.2V 100Ah LFP Cell
Cell Type	Prismatic
Chemistry	Lithium Iron Phosphate (LiFePO₄)
Nominal Voltage	3.2V
Rated Capacity	100Ah
Energy	320Wh
Max Charge Voltage	3.65V
Cut-off Discharge Voltage	2.5V
Standard Charge Current	0.5C (50A)
Max Continuous Discharge	1C (100A)
Cycle Life	≥4000 cycles @ 80% DOD, 25℃
Operating Temp. (Discharge)	-20℃ to +60℃
Operating Temp. (Charge)	0℃ to +55℃
Weight	Approx. 2.2–2.5 kg
Dimensions (L×W×T)	Approx. 173 × 110 × 45 mm (varies by batch)
Shell Type	Aluminum Alloy
QR Code	Yes (for traceability & verification)

Product Uses

[Application Scenarios]

✅ Home & Commercial Energy Storage Systems (ESS)
✅ Electric Forklifts & Material Handling Equipment
✅ Electric Motorcycles & Light EVs
✅ Solar Power Storage
✅ Telecom Base Station Backup
✅ Off-grid or Hybrid Inverters

FAQ

1). Are the batteries GRADE A,Brand NEW?
Yes, GRADE A + quality. the QR code is intact, Brand new.

2).Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts,One Battery will come with one set bus bar and bolt(e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs bolts)If need more please contact us online.

3).Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.

4.)What kind of the package of the cells?

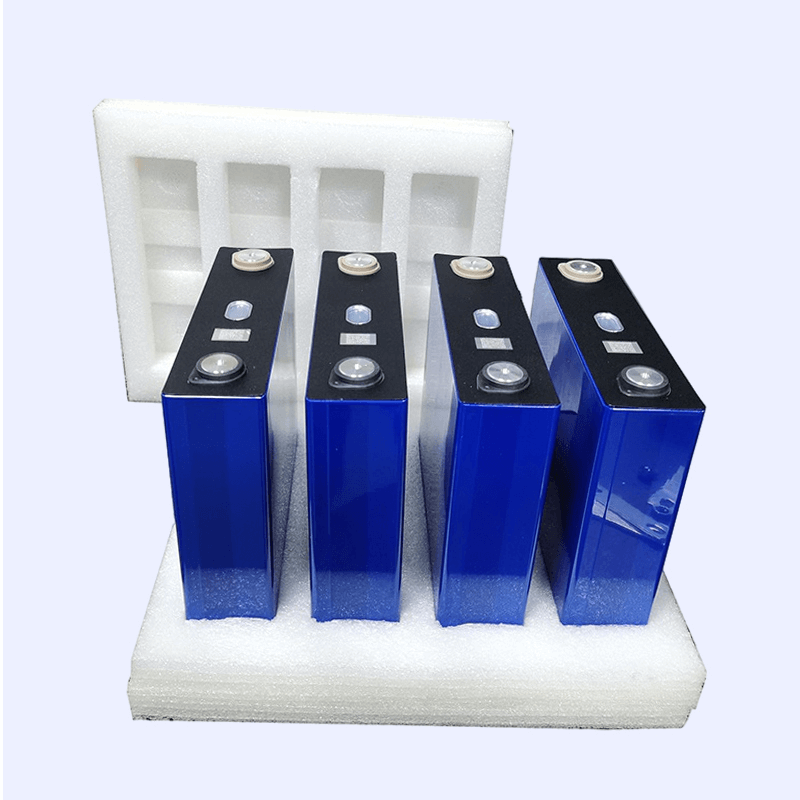

Pack with strong package, each cell into thickness PE foam or bag, then into 5 layers strong carton.

5).How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or
free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your
shipping informtion to our sales they will creat online order for you.

6).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP.
