Product Description

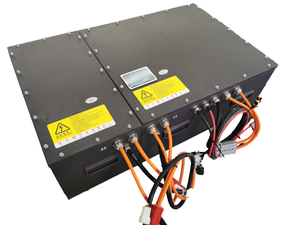

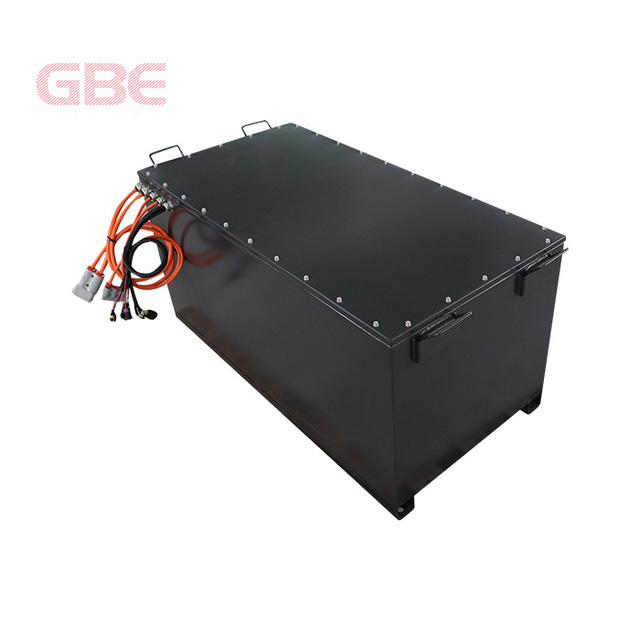

The 72V 300Ah LiFePO4 Battery (nominal voltage 76.8V) is engineered to revolutionize urban cleaning operations. Designed for modern electric street sweepers, this high-voltage lithium solution delivers unmatched power density, rapid charging, and near-silent operation—replacing outdated lead-acid systems with a sustainable, cost-effective alternative. Certified for global safety standards (UN38.3, CE, UL1973), it empowers municipalities and contractors to achieve 24/7 cleaning efficiency while slashing operational costs by up to 40%210.
700A Continuous Discharge: Handles peak loads during simultaneous sweeping, suction, and compaction without voltage drop, ensuring consistent performance in hilly or high-debris areas16.
300Ah Capacity: Supports 8–10 hours of continuous operation on a single charge, covering 220+ km per shift—ideal for overnight city cleaning without midday recharging37.
-20°C to 60°C Operation: Arctic-grade cold-start tech maintains >82% capacity at -20°C; liquid cooling prevents overheating in desert climates210.
1.5-Hour Full Charge (vs. 8+ hours for lead-acid): Opportunity charging during breaks extends uptime. Integrated 4C charging accepts 500A current without degradation28.
Smart Energy Recovery: Regenerative braking reclaims 15% kinetic energy during deceleration, boosting efficiency2.
<65 dB Noise Output: Library-quiet operation for early-morning or residential zone cleaning—no public disturbance37.
Zero Tailpipe Emissions: Eliminates CO₂, NOx, and particulate matter, supporting city carbon-neutrality goals (reduces 12 tons CO₂/year per vehicle)710.
Triple-Layer Protection:
Intelligent BMS: Real-time monitoring for overcharge/discharge, short-circuit, and thermal runaway (UL/IEC62619 certified)18.
Flame-Retardant Enclosure: IP67-rated housing resists dust, water jets, and road salt corrosion210.
CellArmor™ Tech: Isolates faulty cells in 0.2 seconds, preventing cascading failures4.
4,000+ Cycles @ 80% DoD: Outlasts lead-acid by 3x, ensuring 8+ years of service with minimal capacity fade210.
| Parameter | Specification | Advantage |
|---|---|---|
| Nominal Voltage | 76.8V | High torque for climbing inclines |
| Capacity | 300Ah | Extended shift coverage |
| Energy | 23 kWh | Powers sweeper + auxiliary systems (spray, suction) |
| Peak Discharge | 400A (5-sec pulse) | Handles debris surges |
| Charging Time | 2h (20%→100%) | Minimizes fleet downtime |
| Cycle Life | 4,000+ @ 80% DoD | 8-year lifespan, low TCO |
| Weight | 290 kg | 30% lighter than lead-acid, reduces vehicle strain8 |
| Dimensions | 1060×280×600 mm | Fits standard sweeper battery trays8 |
| Operating Temp | -20°C to 60°C | All-season reliability |
| Certifications | UN38.3, CE, UL1973, RoHS | Global compliance |
| Feature | Lead-Acid Competitors | Our LiFePO4 Solution |
|---|---|---|
| Shift Uptime | 5–6 hours | 8–10 hours |
| Charging Time | 8–10 hours | 1.5 hours |
| Lifetime Cost | $0.35/kWh | $0.12/kWh |
| Noise Level | 85+ dB | <65 dB |
| Maintenance | Monthly watering/equalizing | Zero maintenance |
| Warranty | 1–2 years | 5-year full coverage |
*Data validated in field tests with Euro-spec sweepers (e.g., Bucher CityCat V20e)*310.
CAN Bus Communication: Real-time data on SOC, temperature, and health sent to fleet dashboards (compatible with Bosch, Siemens control systems)16.
Predictive Maintenance Alerts: BMS forecasts cell degradation, reducing unplanned downtime by 25%4.
95% Recyclable: Closed-loop recycling program for end-of-life cells (meets ISO 14001)2.
Solar Charging Compatible: Integrates with municipal solar arrays via MPPT controllers—cutting grid dependence2.
Challenge: Narrow streets, strict noise ordinances (≤65 dB after 10 PM).
Solution: Paired with compact sweepers (e.g., Tennant T7).
Results: 22% more streets cleaned per shift; 0 noise complaints37.
Challenge: Heavy dust, continuous 10-hour shifts.
Solution: 2× batteries with hot-swap capability.
Results: 98% uptime; 30% lower energy costs vs. diesel10.
Challenge: -15°C average temp, salt corrosion.
Solution: Cold-optimized cells + IP67 enclosure.
Results: 95% winter capacity retention; zero corrosion damage210.
5-Year Warranty: Covers 70%+ capacity retention after 3,500 cycles4.
Global Technical Network: 24/7 remote diagnostics + on-site support in 48h (EU/NA regions).
Customization: Voltage tuning, form-factor adjustments, and CAN protocol integration
