Product Introduction
EVE LF304 3.2V 304Ah LiFePO4 battery cell, designed for telecom energy storage, home storage, specialized vehicles, and marine power. High cycle life of 4000+ cycles, A-grade cells, competitive pricing. Inquire now for customized solutions!
The EVE 304Ah battery cell is a high-performance lithium iron phosphate (LFP) battery designed for power battery systems and energy storage. It has excellent energy density, long cycle life and excellent safety performance. With its advanced production technology and strict quality control standards, the EVE 304Ah has become the first choice for many companies to achieve green energy solutions. This battery cell has a variety of capacity options such as 304Ah, 310Ah, and the largest option is 314Ah.
Impressive Cycle Life:
The LF304 offers 4000+ charge cycles, ensuring long-term reliability for energy storage applications. It’s perfect for industries that require frequent charge and discharge cycles, including telecom, industrial machinery, and electric vehicles.
High Energy Density:
With a capacity of 304Ah and a voltage of 3.2V, the LF304 offers a high energy density, allowing it to store large amounts of energy in a relatively compact size. This makes it ideal for space-sensitive applications like home energy storage and electric vehicles.
Superior Thermal Stability and Safety:
Built with LiFePO4 technology, the LF304 ensures high thermal stability and safe operation under a variety of temperatures. This means reduced risk of thermal runaway and greater safety compared to other lithium-ion chemistries.
Technical Parameters
| Table 2 Basic specifications and parameters | ||
| Items | Specification | Notes |
| Nommal Capacity | 304.0Ah | 0.5C/0.5C,25℃±2℃,2,5V~3.65 V, Frosh cell |
| Nominal Encrgy | 972.8 Wh | |
| Nominal Voltage | 3.2V | 0.5C discharge,25℃±2℃,2.5V~3.65V |
| End-off-charge Voltage（Umax） | 3.65V | / |
| End-off-dicharge Voltage（Umm） | 2.5V(T>0℃) 2.0V(T≤0℃) | / |
| Standard Charging Current | 152A | 0.5C |
| Maximum Instantaneous Charging Current | 2C | 30s,≤80%SOC,25℃±2℃ |
| Standard Discharging Current | 152A | 0.5C |
| Model | LF304 | Specirication No. | PBRI-LF304-D06-01 E | Version | E | |||
| Maximum Instantancous Discharging Current | 3C | 30s,≥30%30C,25℃C±2℃ | ||||||
| Initial DR | 0.16mΩ±0.05mΩ | AC,I kHz 19%~40%SOC, Fresh cell 鲜电池 | ||||||
| Direct Current Resistance (DCR) | ≤1.2mΩ | 25℃,50% SOC,IC,10s, Fresh ccll | ||||||
| Weight | 5450g±164g | / | ||||||
| Dimension (With Insulation Film ） | Terminal Height | 207.20mm±0.50mm | With Terminal | |||||
| Can-lop Height | 204.40mm±0.50mm | Without Terminal | ||||||
| Length | 173.70mm±0.50mm | |||||||
| Thickness | 71.70mm±0.80mm | (300 kgf±20 kgfcompression force, Delivery SOC) | ||||||
| Center Distance between Poles | 123.00mm±0.30mm | / | ||||||
| Operution Temperature | Charge Temperature | -10℃~65℃ | / | |||||
| Discharge Temperature | -35℃~65℃ | / | ||||||
| Storage Temperatre | 3 months | 0℃-35℃ | Delivery SOC | |||||
| 1 month | -20℃~45℃ | |||||||
| Swelling force at EOL | ≤30000N | 80% SOH | ||||||
Product Uses
Electric Vehicles (EV)
Applicable to various models such as electric passenger cars, electric trucks, electric buses, etc., to help create green travel.
Energy Storage System (ESS)
Suitable for home, commercial and industrial energy storage needs, such as off-grid solar systems and grid peak load applications.
Low-speed electric vehicles
Such as sightseeing vehicles, forklifts and other small vehicles, providing long-term power support.
Communication base stations and backup power supplies
Provide stable power guarantee in key scenarios.

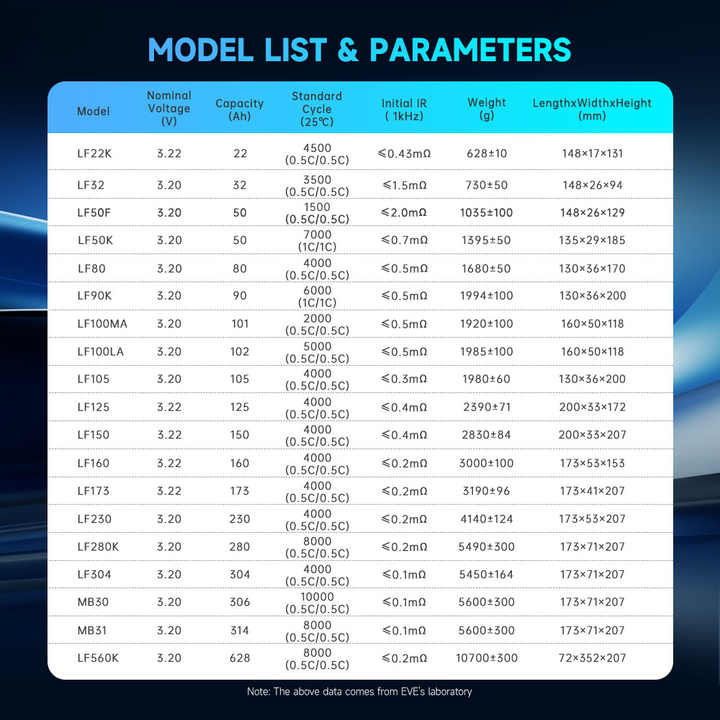

Product List Guide
FAQ
Premium Quality Control:
We only offer A-grade LiFePO4 cells, ensuring the highest standards of performance, safety, and reliability. Every EVE LF304 battery cell undergoes rigorous testing before delivery.
Long-Term Partner:
GBE Battery has a proven track record of providing customized energy solutions for diverse applications, ensuring that you get the right product for your specific needs.
Competitive Pricing & Fast Shipping:
We offer the EVE LF304 battery at an affordable price without sacrificing quality. With a global supply chain, we ensure timely delivery to meet your business needs.
Custom Solutions:
Whether you need a customized voltage, capacity, or battery pack configuration, our team is here to design the perfect solution tailored to your exact requirements.
Q1: What is the cycle life of the EVE LF304 3.2V 304Ah battery cell?
A1:
The LF304 offers an impressive 4000+ charge cycles, ensuring excellent durability and long-term reliability for applications such as telecom storage, home energy storage, and specialized vehicles.
Q2: Can I customize the battery configuration for my specific needs?
A2:
Yes, we offer customized solutions to meet your specific requirements. Whether you need different voltage, capacity, or battery configurations, our team will work with you to deliver the perfect energy solution.
Q3: Is the EVE LF304 battery safe to use in high-demand environments?
A3:
Yes, the LiFePO4 chemistry used in the LF304 ensures excellent thermal stability and safety, even under high-demand conditions such as heavy machinery and marine applications.
Q4: Can I request a sample for testing before placing a bulk order?
A4:
Absolutely! We offer the option to request a sample to test the EVE LF304 battery cell’s performance. Please contact us to arrange a sample order.
If you are looking for a reliable, long-lasting, and customizable energy storage solution, the EVE LF304 3.2V 304Ah LiFePO4 battery cell is the ideal choice. Submit an inquiry today, and our team will provide you with a tailored solution and competitive pricing.
