Product Introduction

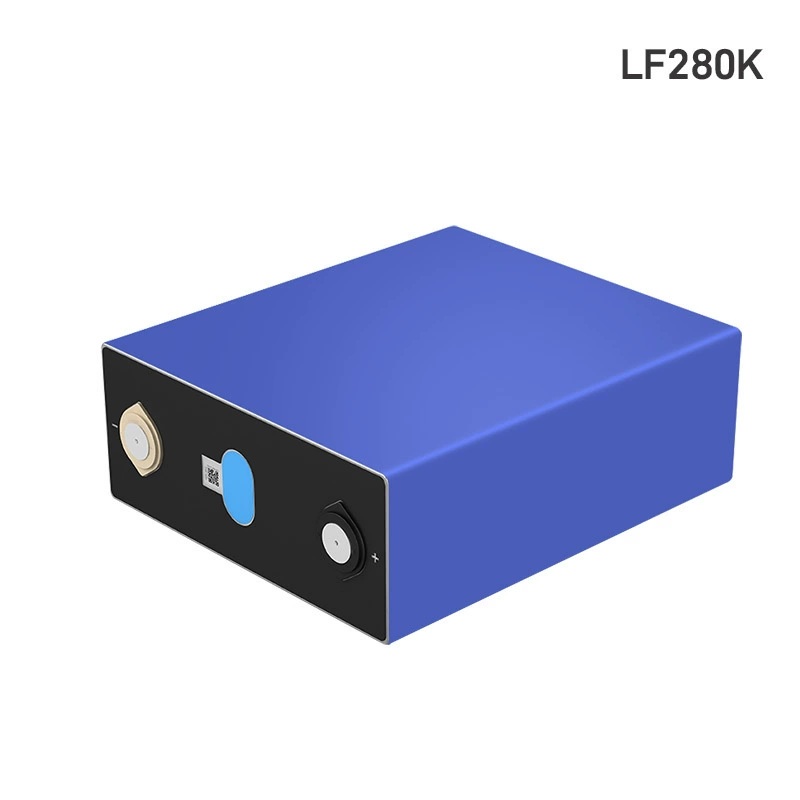

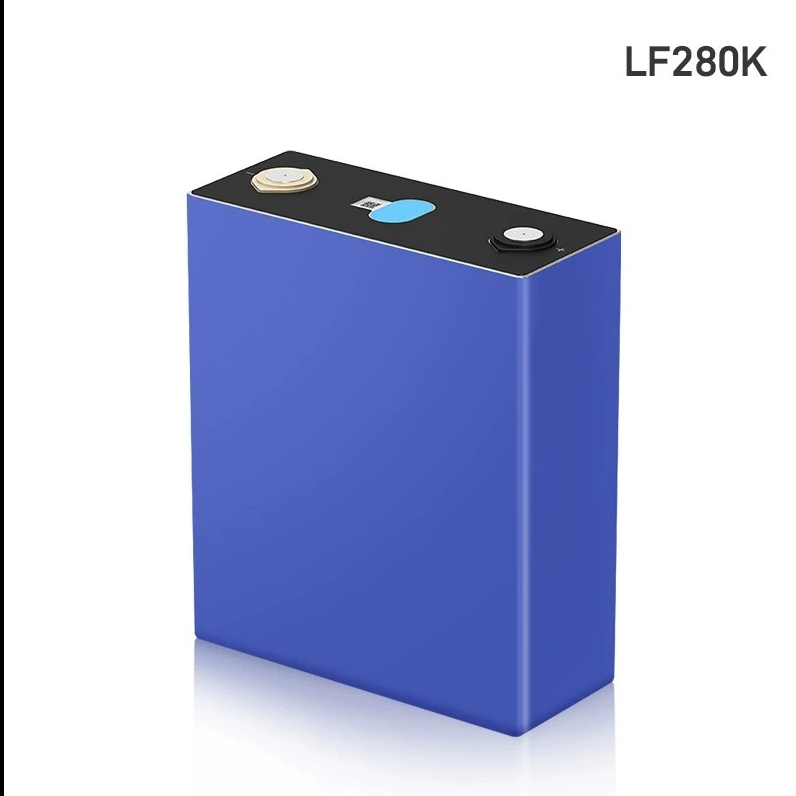

EVE LF280K 3.2V 280Ah LiFePO4 Battery Cell – Reliable and High-Performance Power for Energy Storage, Telecom, and More.
The EVE LF280K lithium iron phosphate (LiFePO₄) battery cell is a high-performance phosphate lithium-ion battery designed for energy storage and power supply applications. With a nominal voltage of 3.2V and a capacity of 280Ah, the LF280K cell offers outstanding energy density, long lifespan, and high safety standards. This LiFePO₄ battery cell is perfect for demanding applications, such as communication storage, home energy storage, engineering machinery, specialized vehicles, and marine power systems.
As a trusted supplier, GBE Battery offers premium-grade A cells at competitive prices, ensuring our customers receive the best value for their investment.
Product Advantage
Ultra-high capacity: The large capacity of 280Ah enables it to store more electricity on a single cell, greatly improving the endurance of the energy storage system or electric vehicle, and is suitable for applications that require long-term power supply.
Long cycle life: The EVE 280Ah cell has excellent cycle life performance, and can remain stable even under high-rate charge and discharge, usually reaching a cycle life of more than 3,000 times, effectively extending the system's service life and reducing the frequency of battery replacement.
High-rate charge and discharge performance: Supports high-rate charge and discharge, can provide a large amount of current in a short time, and meet the instantaneous needs of high-power equipment.
High energy density: The 280Ah cell has a high energy density while maintaining a high capacity, which is conducive to the lightweight design of the system.
Excellent temperature stability: The cell has good thermal stability and temperature control performance. Even in high or low temperature environments, the discharge efficiency and stability can be maintained at a high level, which is safer and more reliable for use in cold or hot climates.
Safety design: EVE 280Ah batteries have undergone rigorous safety tests, including short circuit, overcharge, over discharge and other tests, to ensure that they can maintain good safety performance under various extreme conditions, and are suitable for energy storage and transportation applications with high safety requirements.
High cost performance: Compared with some international brands, EVE 280Ah batteries are highly competitive in price, and stable performance and long life help users reduce the long-term use cost of the system.
Technical Parameters
| 2.1 Basic Specifications and Parameters Table 2 Basic specifications and parameters | ||
| Items | Specifications | Remarks |
| Nominal Capacity | 280 Ah | 0.5P/0.5P, 25℃±2℃C, 2.5 V-3.65 V Fresh cell |
| Nominal Energy | 896 Wh | |
| Nominal Woltage | 3.2V | 0.5P discharge,25℃ ±2°℃C,2.5V~ 3.65 V |
| Charging Cut-off Voltage（Ummx） | 3.65 V | / |
| Discharging Cut-off Voltage（Unin） | 2.5V(T>0℃) 2.0V (T ≤0℃) | / |
| Standard Charging Power | 448 W | 25℃±2℃,0.5P |
| Max Continuous Charging Power | 896 W | 25℃±2°C,1P |
| Standard Discharging Power | 448 W | 0.5P |
| Max Contimuous Discharging Power | 896 W | 25℃±2℃C,IP |
| specifications and parameters | ||||||||
| Model | LP280K | Specicaion No. | PBRI-LF280K-D06-01 | Version | C | |||
| Maximum Continuous Discharge Power | ||||||||
| Initial Internal Resistance | ≤0.25m | AC, 1 kHz Delvery SOC Fresh cell | ||||||
| Direct Current Resistance (DCR) | ≤1.5mΩ | 25℃, 50% SOC, 1C, IO ε, Frcsh cel | ||||||
| Weight | 5490 g±300 g | / | ||||||
| Dimensions (With msmlation film) | Heightl（H1） | 2072+0.5 mm | With Terminal | |||||
| Height2（H2） | 204.6:10.5 mm | Without Terminal | ||||||
| Length（L） | 173.7±0.5 mm | |||||||
| Thickness（T） | 717+0B mmm | (300 kgf±20 kgf compression force,Delivery SOC) | ||||||
| Center distance between the poles（D） | 123.0±0.3 mm | / | ||||||
| Operation Temperature | Charging Temperature | 0-60℃ | / | |||||
| Discharging Temperntore | ·30-60℃ | / | ||||||
| Stomge Temperature | 1year | 0-35℃C | DcHvery SOC stulas | |||||
| I month | -20~45℃ | |||||||
| Swelbng Force | ≤40000 N | 70% SOH | ||||||
| ≤50000 N | 60% SOH | |||||||
FAQ
Reliable Quality:
We offer A-grade cells and ensure every battery meets international standards for performance, safety, and efficiency.
Long-Term Partner:
With years of experience and expertise in the energy storage industry, GBE Battery has built a reputation for providing high-quality, customizable energy solutions that meet the unique needs of our clients.
Competitive Pricing:
We offer the EVE LF280K 3.2V 280Ah battery at highly competitive prices, ensuring that you receive great value without compromising on quality.
Customized Solutions:
Our custom solutions team is ready to help design the perfect battery pack for your specific application, whether it's for telecom, home storage, or electric vehicles.
Q1: What applications are best suited for the EVE LF280K 3.2V 280Ah LiFePO4 battery cell?
A1:
The LF280K is ideal for telecom energy storage, home battery systems, specialized vehicles, heavy machinery, and marine energy applications. Its versatility makes it suitable for various industries.
Q2: How long will the EVE LF280K 3.2V 280Ah battery last?
A2:
The LF280K offers a cycle life of 5000+ cycles, providing excellent longevity and making it a reliable, long-term investment.
Q3: Can I customize the battery configuration?
A3:
Yes, we provide customized configurations for the EVE LF280K 3.2V 280Ah battery cell. Our team will work with you to ensure the battery pack fits your specific needs.
Q4: Is the EVE LF280K 3.2V 280Ah battery safe to use?
A4:
Yes, the LiFePO4 chemistry used in the LF280K ensures high safety with low risk of thermal runaway, even under high temperatures and heavy-duty usage.
Ready to optimize your energy storage solution with the EVE LF280K 3.2V 280Ah LiFePO4 battery cell? Submit an inquiry today, and our team will provide you with a tailored solution and competitive pricing.
