Product Introduction

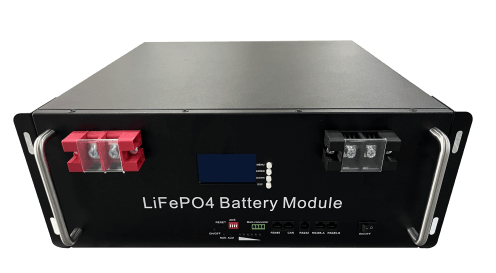

GBE Battery offers 48V 150Ah Tower Energy Storage Battery – High-Capacity & Smart Energy Solution
Explore our cutting-edge 48V 150Ah Tower Energy Storage Battery, designed to meet your energy storage needs with unmatched efficiency, reliability, and performance. Whether for residential, commercial, or industrial use, this battery is the perfect solution for sustainable energy storage. Read on to learn more about the product, its advantages, and answers to frequently asked questions.
The 48V 150Ah Tower Energy Storage Battery is a high-capacity lithium-ion battery designed for energy storage systems. With a voltage of 48V and a capacity of 150Ah, this battery delivers 7.2 kWh of energy, making it ideal for solar energy storage, backup power, and off-grid applications. Its compact tower design saves space while providing robust performance.
With a modular tower design, this battery is space-saving and easy to integrate into existing power systems. The built-in Smart Battery Management System (BMS) ensures overcharge, over-discharge, short circuit, and temperature protection, providing a stable and reliable power supply for homes, businesses, and off-grid applications.
Product Advantage
7.68kWh large energy storage capacity for extended power backup
99% Depth of Discharge (DoD) for maximum energy utilization
High charge/discharge efficiency, ideal for solar energy storage
Built with premium LiFePO4 cells, offering 6000+ cycles
Designed to last 10+ years with proper use
Low self-discharge rate, ensuring minimal energy loss over time
Smart BMS protection against overcharge, over-discharge, and short circuits
Thermal management system to prevent overheating
Stable voltage output, ensuring safe operation for sensitive electronics
Space-saving vertical tower structure for efficient storage
Plug-and-play installation, easy to expand capacity if needed
No maintenance required, ensuring hassle-free operation
Compatible with solar panels, inverters, and off-grid systems
Ideal for home energy storage, commercial power backup, and industrial applications
Works seamlessly with hybrid inverters for efficient power conversion
Technical Parameters
No 序号 | Item 内容 | Parameter 参数 | Remark 备注 |
1 | Rating Voltage 标称电压 | 48V | |
2 | Capacity 标称容量 |
150Ah | 0.2C discharge after full charge 完全充电后用 0.2C 放电至 截止电压的容量 |
3 | minimum capacity 最小容量 |
≥150Ah | 0.2C discharge after full charge 完全充电后用 0.2C 放电至 截止电压的容量 |
4 | communication mode 通讯方式 | RS232 、CAN 、RS485 | |
5 | Charge Voltage 充电电压 | 54.75V | |
6 | ated Charge current 额定充电电流 | ≤30A | Maximum Charge current 最大充电电流：150A |
7 | Impedance 内阻 | ≤30mΩ (Max) | |
8 | Charging Mode 充电方式 | CC/CV 恒流/恒压方式 | Constant Current /Constant Voltage 恒流/恒压 视电池电压转换 |
9 | Charging Method 充电方法 | Standard Charging 0.2C 标准充电 0.2C | Charging Current:30A 充电电流:30A |
Fast Charging0.5C 快速充电 0.5C | Charging Current :150A 充电电流:150A | ||
10 | Charging Time 充电时间 | About 6 Hours 大约 6 小时 | Standard Charging 标准充电 |
About 3 Hours 大约 3 小时 | Fast Charging 快速充电 |
11 | Overcharge Voltage 过充电保护电压 | 3.65V /Cell | Single string voltage 单串电压 (adjustable ) | |
12 | Over Discharge Cut OffVoltage 过放电保护电压 | 2.8V /Cell | Single string voltage 单串电压 (adjustable ) | |
13 | Rated discharge current 额定放电电流 | ≤100A | Maximum discharge current 最大放电电流：150A | |
14 | Over Current 过流保护 | 150A | ||
15 | Short Circuit 输出短路保护 | Recover after removing the short circuit load 保护后撤销短路负载回复 | ||
16 | Operating Current 工作消耗电流 | Consumption | 50mA (Max) | |
17 | Operating Temperature 工作温度 | + 10~+45℃ | Charging 充电 | |
-20~+60℃ | Discharging 放电 | |||
18 |
Storage Temperature 贮存温度 |
-20℃-50℃ Recommend 推荐 (25±5℃) | Storage capacity should be 60±25%R.H full charge capacity 贮存时应充电至相对容量 的 60±25% | |
19 | Cycle Life 循环寿命 | 3000 cycle 3000 次 | Percentage of recoverable capacity 80% 可恢复能量的 80% | |
20 |
Dimensions 尺寸 (mm) |
585*442*177mm | Approx External dimensions of the chassis, without mounting ears and terminals (机箱外尺寸，不 含挂耳和接线端子) | |
21 | Weight 重量 (KG) | ≥ 64kg | 以实际产品重量为准 Subject to actual product weight | |
22 | Shipped product charge 出货产品带电量 | 50%-60% battery volume delivery 50%-60%电量发货 | ||
23 | Package material 包装材质 | Carton + wooden fumigation tray 纸箱+木质免熏蒸托盘 | ||
FAQ
The battery comes with a 5-year warranty, covering manufacturing defects and performance issues.
Yes, the modular design allows you to connect multiple batteries in parallel or series to increase capacity or voltage.
Charging time depends on the charger's output. With a standard 20A charger, the battery can be fully charged in approximately 7-8 hours.
Absolutely! The battery is equipped with an intelligent BMS that ensures safe operation. It is also designed to be maintenance-free and emits no harmful gases.
The battery has a lifespan of over 3000 cycles at 80% DoD, which translates to more than 10 years of reliable service with proper usage.
Yes, the 48V 150Ah battery is compatible with solar energy systems, making it an excellent choice for storing solar power.
Yes, we offer detailed installation guides and customer support to assist you with setup. Professional installation services are also available upon request.
Our batteries are manufactured using A-grade cells and undergo rigorous testing to ensure top performance and safety.
We provide 24/7 customer support and a dedicated team to assist with technical queries and after-sales service.
Enjoy high-quality energy storage solutions at competitive prices, with flexible payment options.
We offer fast and reliable shipping to ensure your product reaches you on time.
